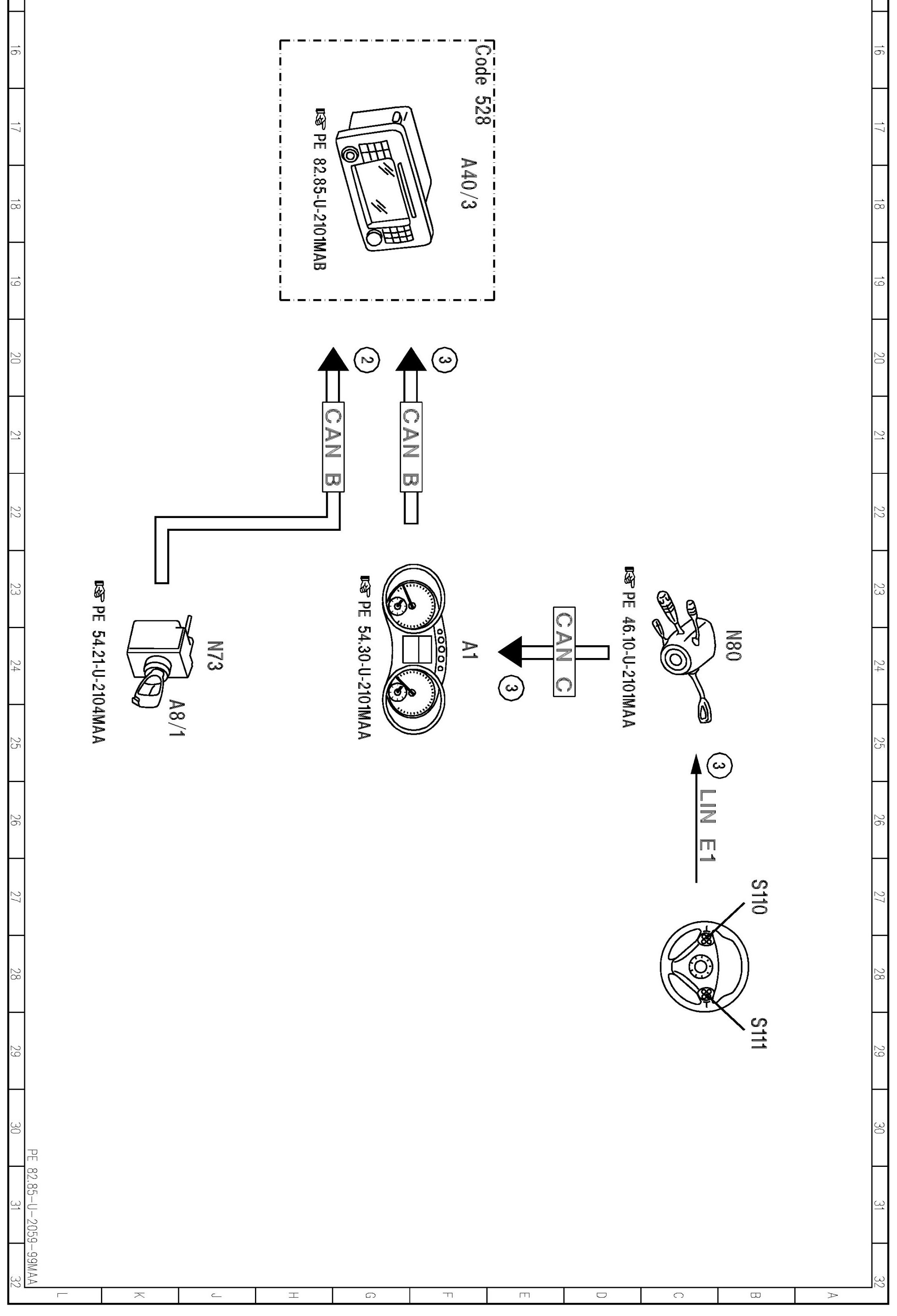

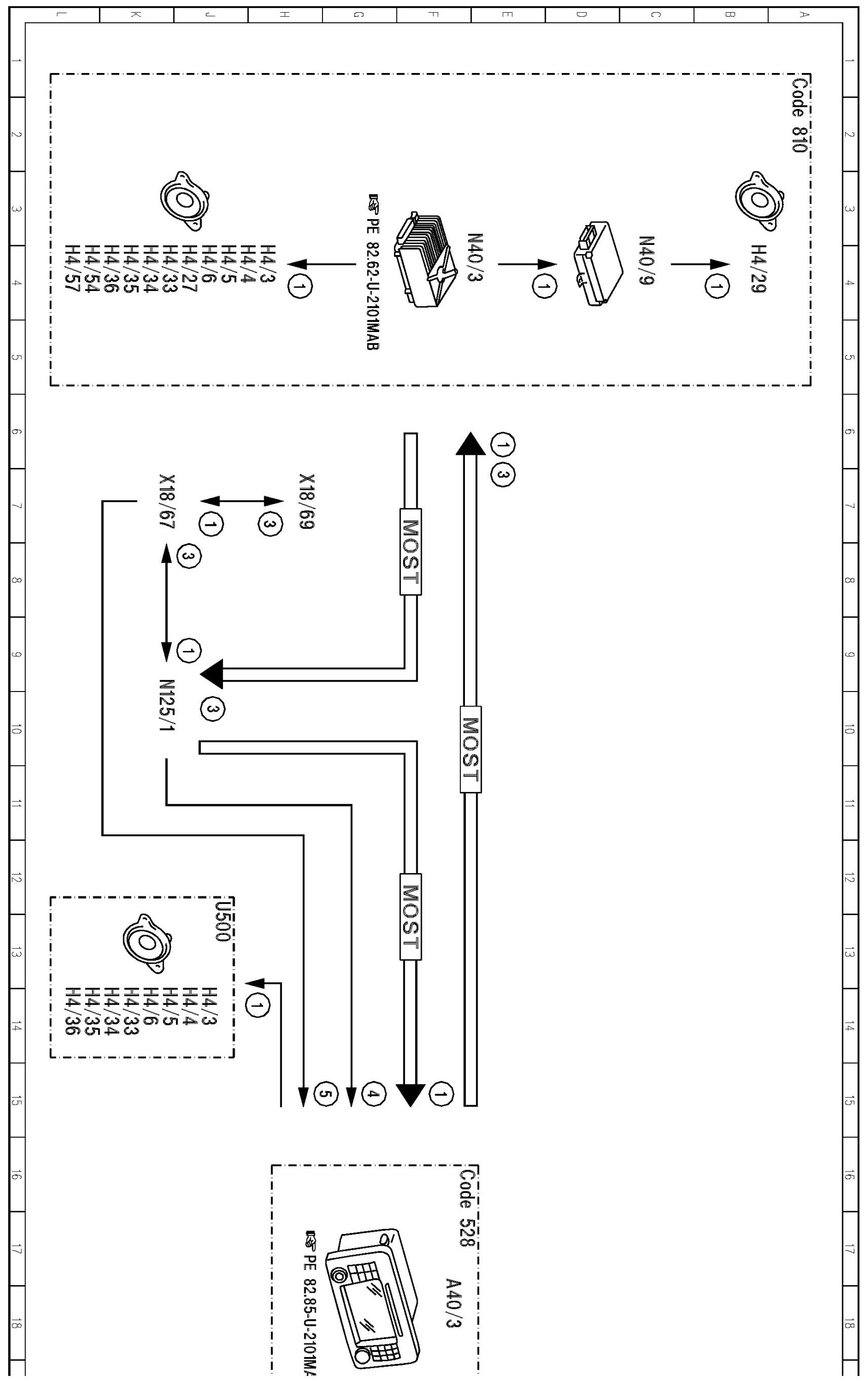

PE82.85-U-2059MAA Electrical Function Schematic For Media Interface, Function



PE82.85-U-2059MAA Electrical Function Schematic For Media Interface, Function
- with CODE (518) Media interface


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
