AR82.20-P-1100GZ Remove/Install Front Overhead Control Panel
AR82.20-P-1100GZ Remove/Install Front Overhead Control Panel
AR82.20-P-1100GZ Remove/Install Front Overhead Control Panel

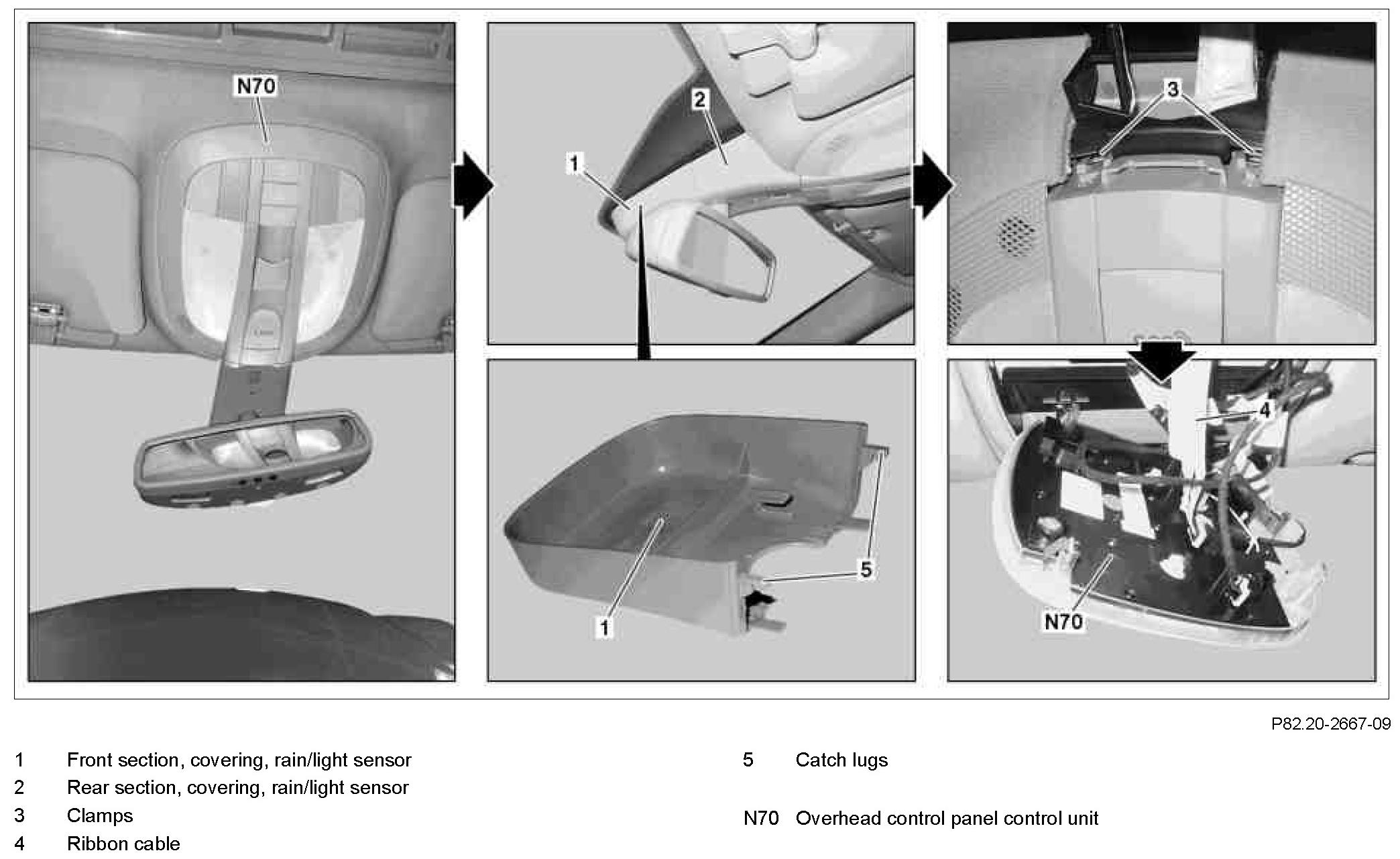

Component Identification:

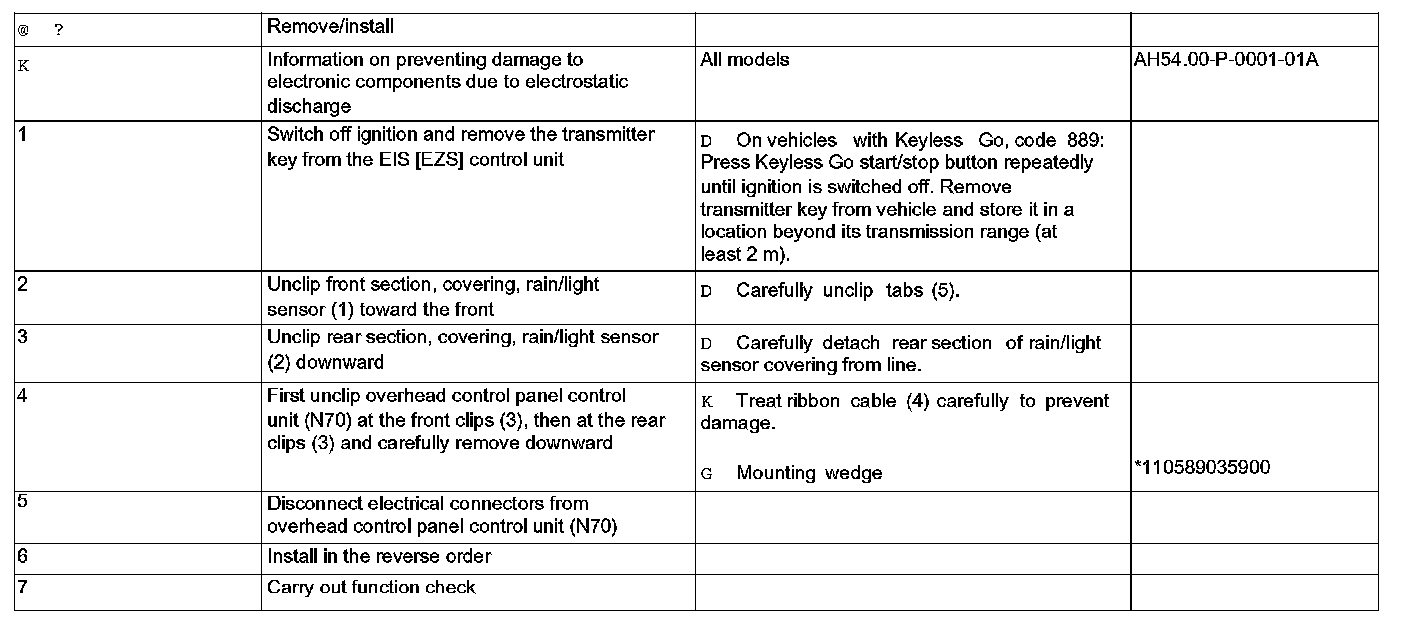

Steps 1 - 7:

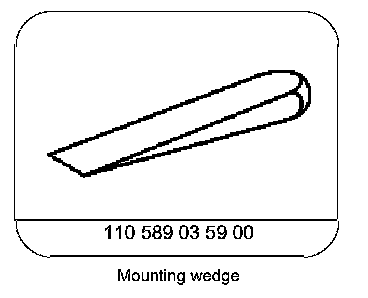

Special Tools:
