Accessory Relay: Service and Repair

SM54.15-D-0003AK Retrofit Relief Relay
MODEL 906.6## 1S up to 222126 with TRANSMISSION 722.6
- with CODE (G40) Automatic transmission
- with CODE (H72) Electric roof fan

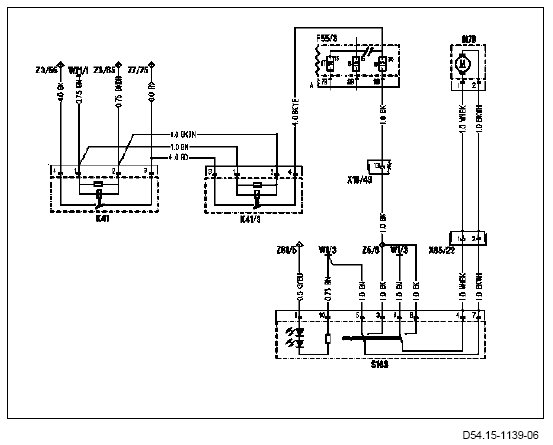

K41 Tml. 15 relief relay
K41/3 Relay 2 relief Tml. 15







F55/3 Fuse block (9 fuses)

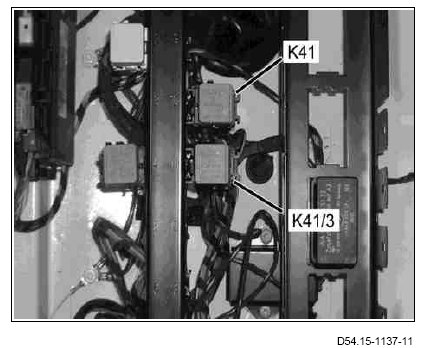

K41 Tml. 15 relief relay
K41/3 Relay 2 relief Tml. 15
M78 Roof fan motor
S163 Cargo area fan pushbutton
