GF72.29-D-4012H B-Pillar Sliding Door Button, Component Description

GF72.29-D-4012H B-pillar Sliding Door Button, Component Description



- with CODE (T55) Electrical actuation for right sliding door
- with CODE (T56) Electrical actuation for left sliding door


- with CODE (T50) Electrical closing assist for right sliding door

- with CODE (T51) Electrical closing assist for left sliding door







S159/1 Right sliding door button
S159/2 Left sliding door button

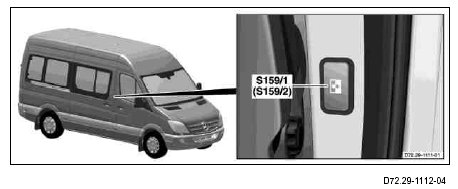

Location

The right sliding door button is located on the right B-pillar. The left sliding door button is located on the left B-pillar.

Task

The right or left sliding door button has the following tasks when the electric load compartment sliding door (E-LST) is closed:
- Pushbutton actuated E-LST opens
- Button repeatedly actuated E-LST stops
- Button reactuated E-LST closes again

The right or left sliding door button has the following tasks when the E-LST is open:
- Pushbutton actuated E-LST closes
- Button repeatedly actuated E-LST stops
- Button reactuated E-LST opens again

Child safety lock

When the child safety lock is actuated, it not possible to operate via the right or left sliding door button
