CD Changer: Diagrams

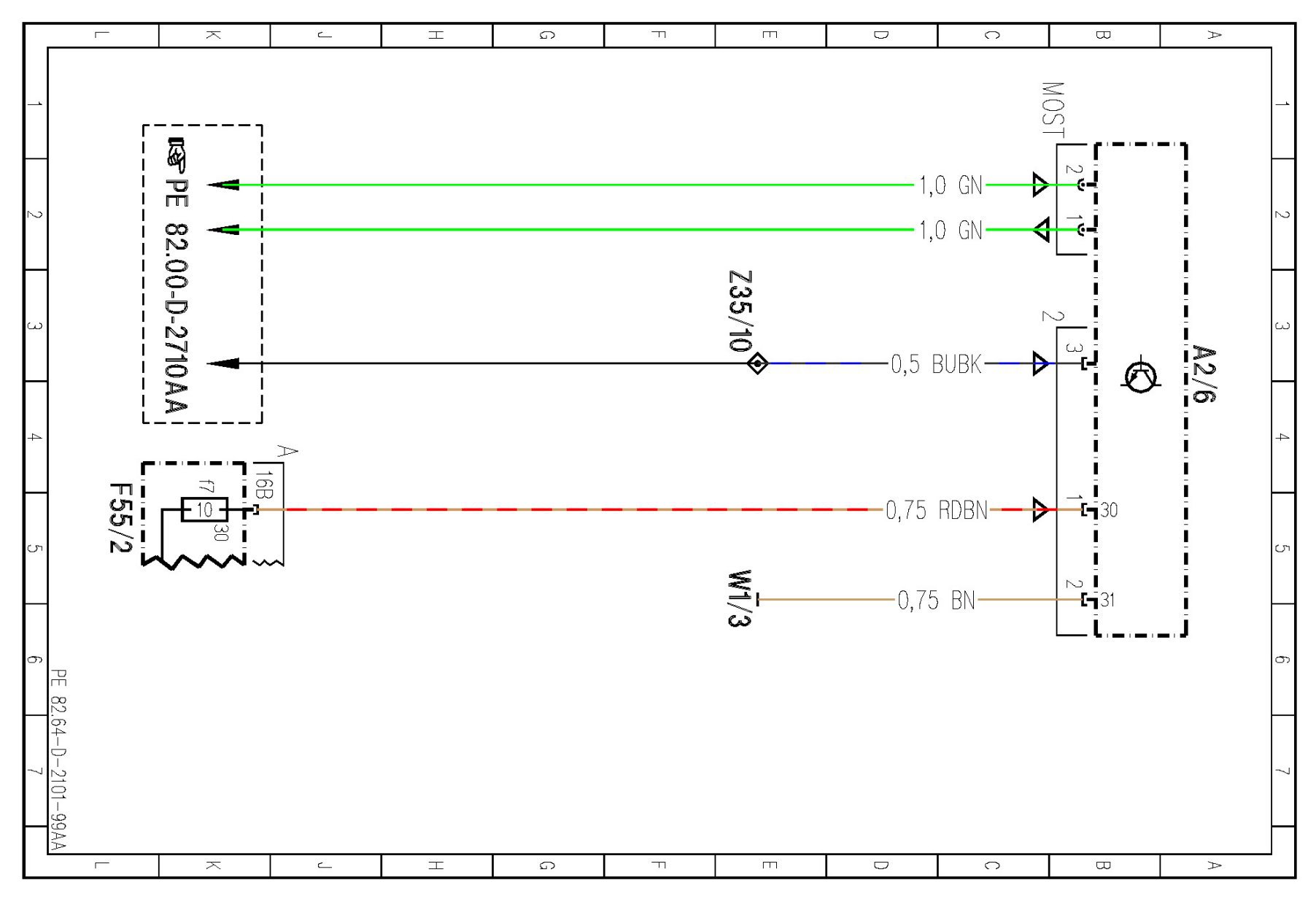

PE82.64-D-2101AA CD Changer (CDC [CDW]) Control Unit Wiring Diagram

906 82 Electrical Systems - Body
Model 906.1 /2 /6 /7 up to 08/31/09
- with CODE (EP5) CD changer
