Procedures

AZ54.65-D-0001-11N Retrofit Sensors For Ultrasonic Backup Assist In Bumper

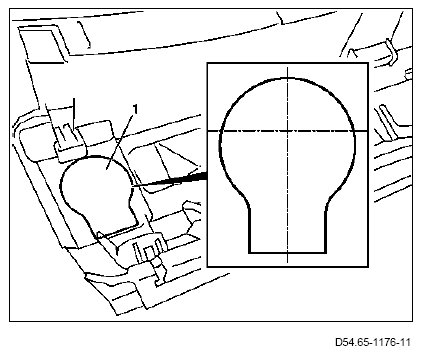

1 Place template on the contours (1) of the inside of the bumper and center accurately.
2 Mark the drilling points and pre-punch.
3 Drill out to 26 mm using a milling cutter.

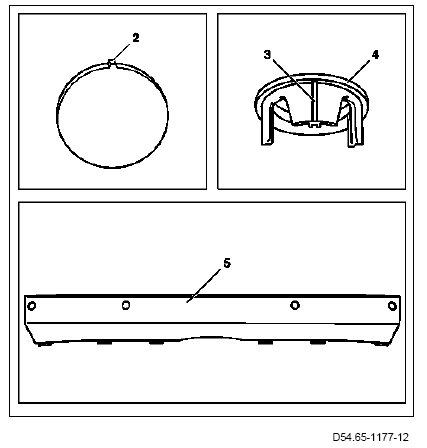

4 File in notch (2) for guide (3).
5 Clip contour ring (4) into bumper center piece (5).
The contour ring (4) must seat firmly in the bumper center piece (5).

6 Clip sensors for ultrasonic backup assist into the contour rings (4).
