SM41.10-D-0005-02A Install Bracket For 3-Section Propeller Shaft

SM41.10-D-0005-02A Install Bracket For 3-section Propeller Shaft

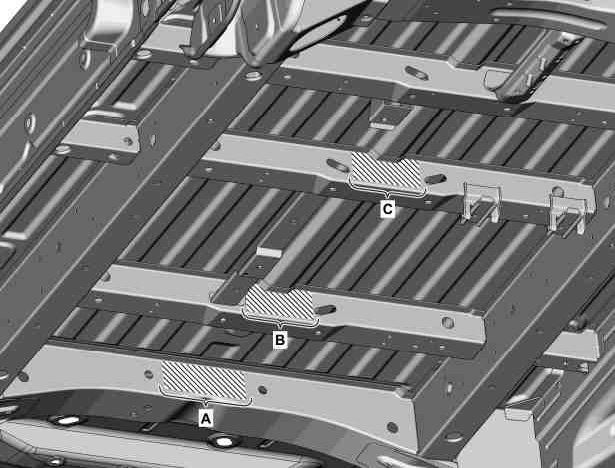

1 Grind mating surface down to bare metal in cross-hatched area (A, B, C) with round wire brush.

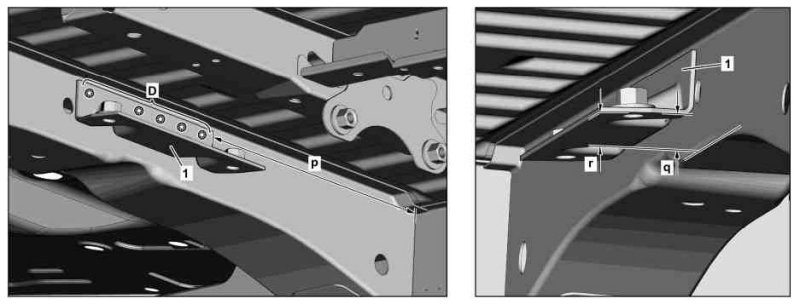

2 Install bracket (1) following dimensions on sketch, fit and fix in place using C-clamps.
3





Make absolutely sure that the height dimensions (q, r) are correct, since these dimensions influence the propeller shaft angle.

Dimensions:
p 322 mm
q 27 mm
r 21 mm

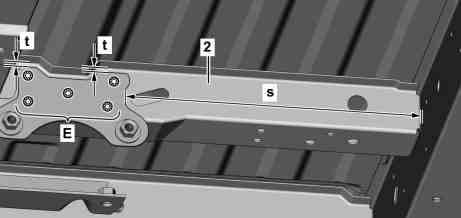

5 Install bracket (2) following dimensions on sketch, fit and fix in place using C-clamps.
6





Dimensions:
s 359 mm
t 6 mm

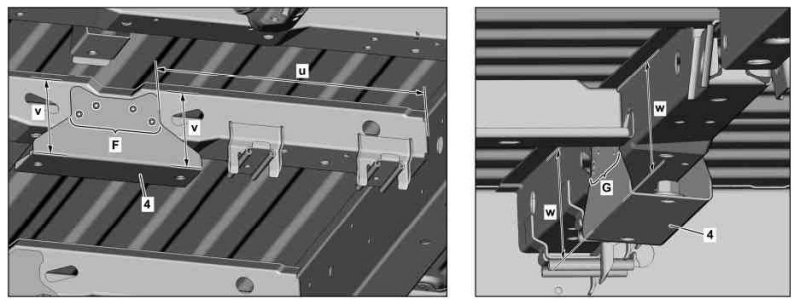

7 Install bracket (4) following dimensions on sketch, fit and fix in place using C-clamps.
8





Make absolutely sure that the height dimensions (b, c) are correct, since these dimensions influence the propeller shaft angle.

Dimensions:
u 367 mm
v 107 mm
w 102 mm
