SM41.10-D-0005-01A Prepare Bracket For 3-Section Propeller Shaft For Installation

SM41.10-D-0005-01A Prepare Bracket For 3-section Propeller Shaft For Installation

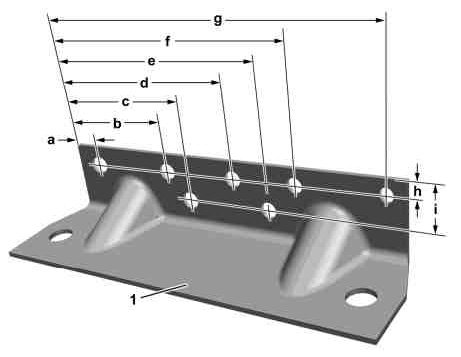

1 Scribe holes on bracket (1) and drill to 10 mm diameter.
2 Grind down areas around the holes to bare metal with round wire brush.

Dimensions:
a 10 mm
b 55 mm
c 75 mm
d 105 mm
e 135 mm
f 150 mm
g 200 mm
h 10 mm
i 25 mm

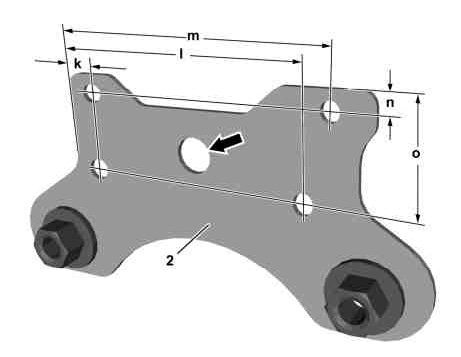

3 Scribe holes on bracket (2) and drill to 10 mm diameter.
4 Use a round wire brush to grind areas around holes and around the precut holes (arrow) down to bare metal.

Dimensions:
k 10 mm
l 120 mm
m 125 mm
n 10 mm
o 40 mm





5 Drill out holes (3) on bracket (4) to 10 mm diameter.
6 Grind down areas around the holes (3) to bare metal with round wire brush.
