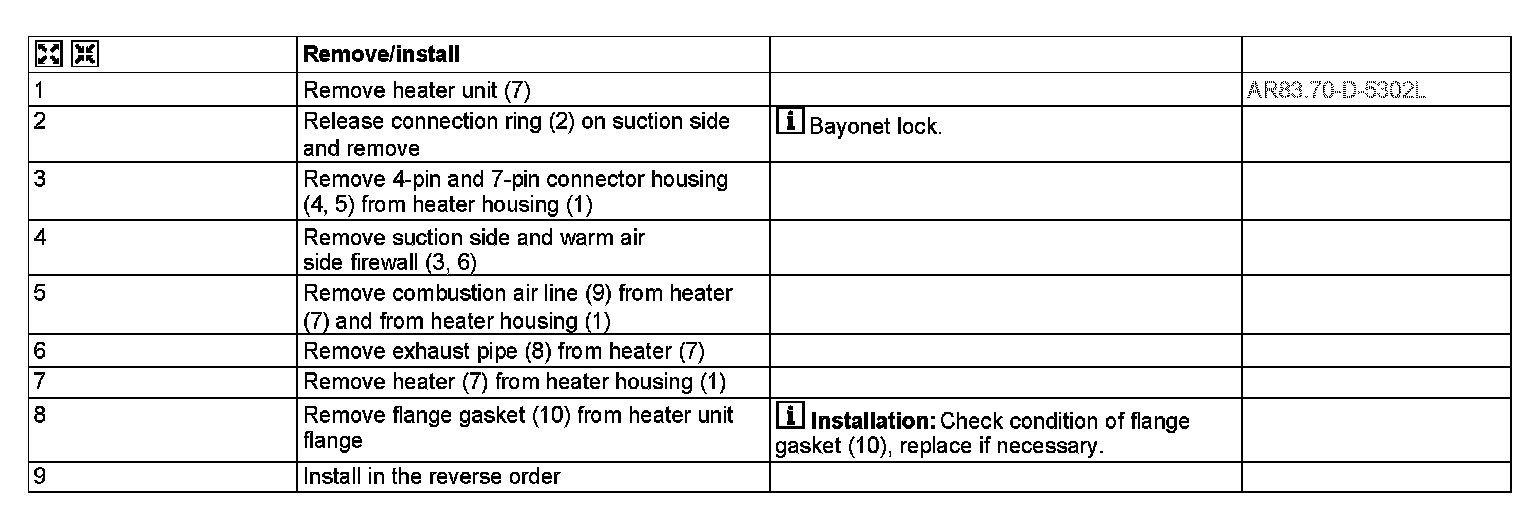

AR83.70-D-5399D Remove/Install Heater From/Into Housing

AR83.70-D-5399D Remove/Install Heater From/into Housing

- with CODE (H11) Warm air auxiliary heater

Heater unit AIRTRONIC D4S

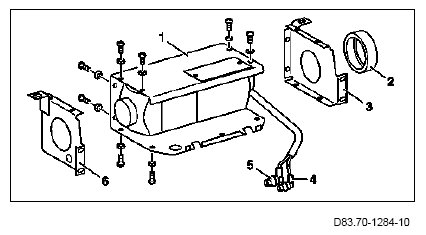

1 Heater housing
2 Connection ring
3 Suction side firewall
4 4-pin plug housing
5 7-pin plug housing
6 Warm air side firewall

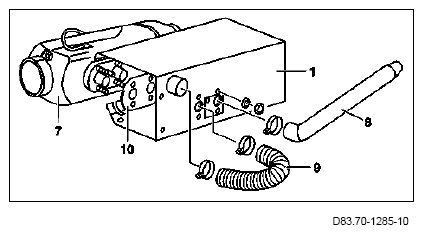

1 Heater housing
7 Heater unit
8 Exhaust pipe
9 Combustion air line
10 Flange gasket
