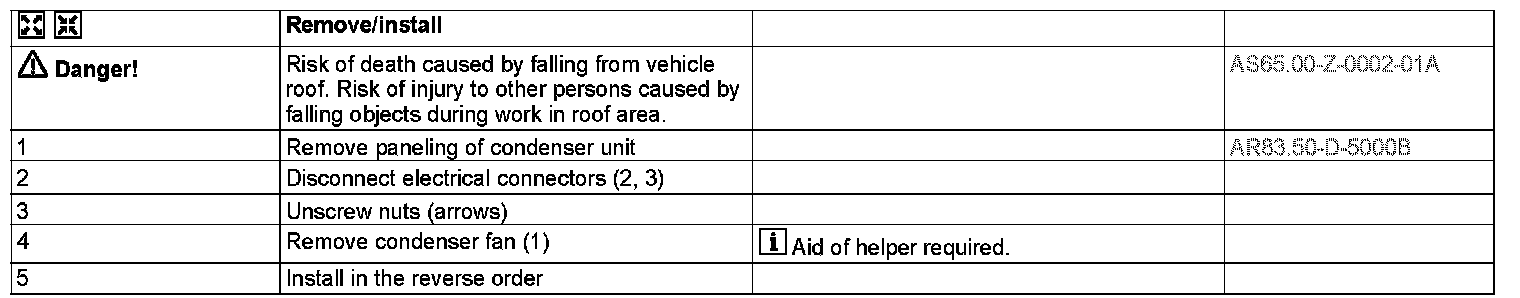

AR83.50-D-5060C Remove/Install the Air Conditioning's Condenser Fan (Roof Equipment)




AR83.50-D-5060C Remove/Install The Air Conditioning's Condenser Fan (Roof Equipment)

- with CODE (H08) High-performance air conditioning

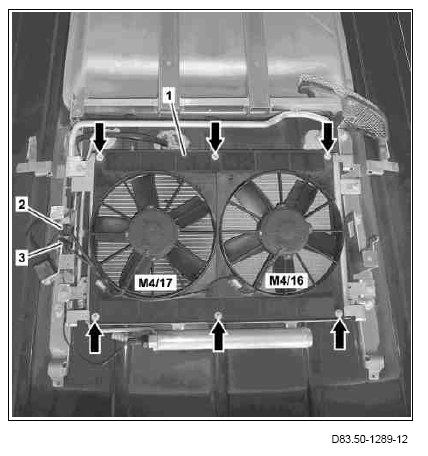

1 Condenser fan
2 Electrical connector
3 Electrical connector
M4/16 Roof air conditioner 1 additional fan
M4/17 Roof air conditioner 2 additional fan
