AR83.50-D-5010C Remove/Install Evaporator Unit Paneling

AR83.50-D-5010C Remove/Install Evaporator Unit Paneling

- with CODE (H08) High-performance air conditioning

Outer paneling







1 Trim
2 Left air grille
3 Strut
4 Right air grille
5 Refrigerant line
6 Bolts
7 Nut

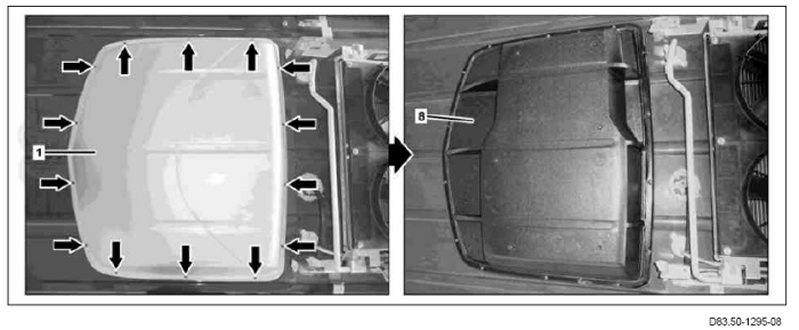

1 Trim
8 Damping material
