AR83.50-D-4000-01A Remove/Install the Air Duct For the Air Conditioning (Roof Equipment)

AR83.50-D-4000-01A Remove/Install The Air Duct For The Air Conditioning (Roof Equipment)
- with CODE (HH7) Additional air conditioning in rear

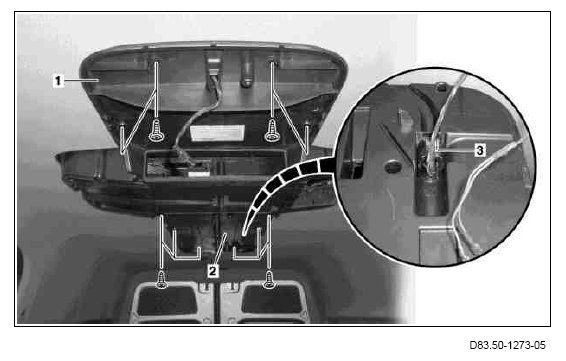

1 Unscrew bolts and remove front air duct (1).
2 Unscrew bolts, lower rear air duct (2) slightly and remove air conditioning's (3) air temperature sensor.
3 Remove rear air duct (2).
4 Install in the reverse order.
