AR91.21-D-5500-02A Detach/Attach Retaining Rails of Backrest Padding

AR91.21-D-5500-02A Detach/Attach Retaining Rails Of Backrest Padding

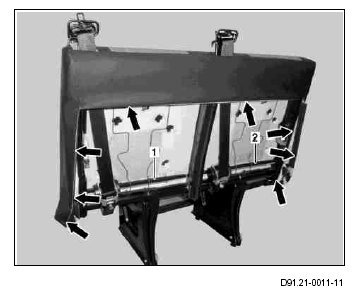

1. Unhook retaining rails of backrest padding from backrest frame (arrows).
2. Remove tensioning rails (1, 2) of seat cushion cover and unhook retaining rails of backrest padding located underneath.
3. Install in the reverse order.
