GF77.20-D-4360H Rear Sliding Roof Unit (SR), Component Description

GF77.20-D-4360H Rear Sliding Roof Unit (SR), Component Description

- with CODE (D24) Power tilting/sliding roof, passenger compartment

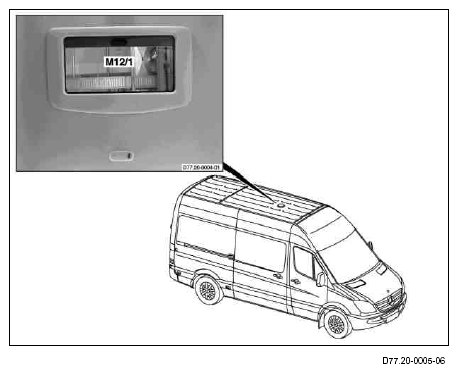

Shown on model 906.7

M12/1 Rear tilting/sliding roof

Location

The rear tilting/sliding roof is located in the roof of the passenger compartment (model 906.7) or in the roof of the load compartment (model 906.6).

Task

The rear tilting/sliding roof serves for supplying fresh air and replacing the air in the interior compartment

Design

The rear tilting/sliding roof consists of the rear tilting/sliding roof motor (M12/1m1) with rear tilting/sliding roof hall sensor (M12/1b1) and rear tilting/sliding roof Hall sensor (M12/1b2), the guide rails, the cables, the glass roof and the roller sun blind.
