Structural Brace: Service and Repair

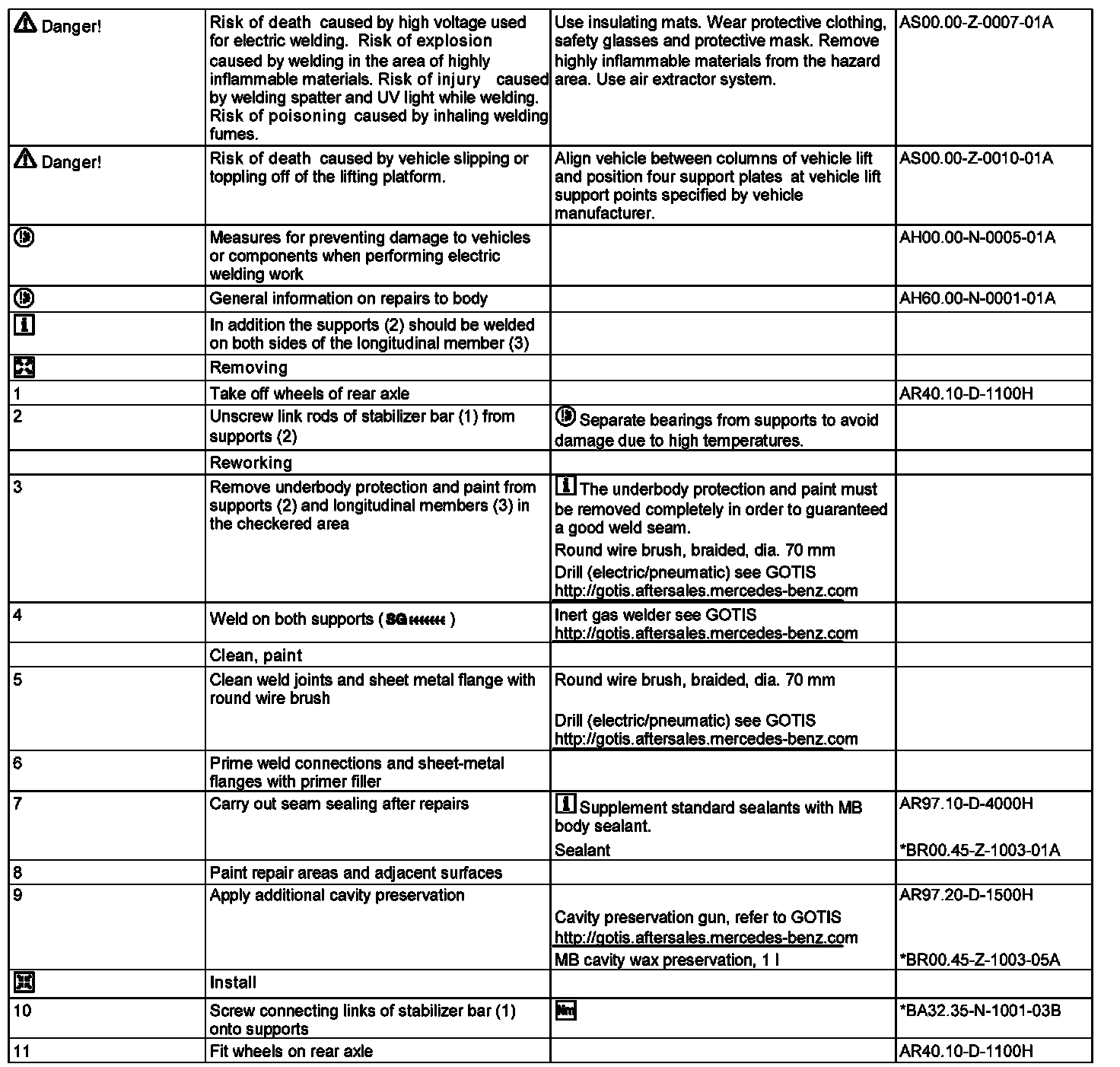

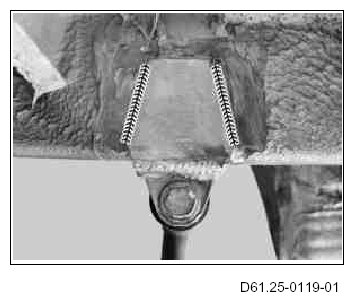

SM61.25-D-0002A Reweld Console For Connecting Stabilizer Bar Of Rear Axle To Longitudinal Frame Member

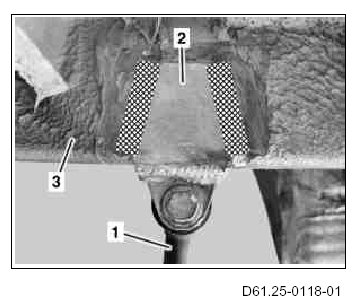

1 Stabilizer link rod
2 Mount
3 Longitudinal member
