GF72.29-D-4015H Sliding Door Drive, Component Description

GF72.29-D-4015H Sliding Door Drive, Component Description



- with CODE (T55) Electrical actuation for right sliding door
- with CODE (T56) Electrical actuation for left sliding door







M73/1 Right sliding door drive
M73/2 Left sliding door drive

Location

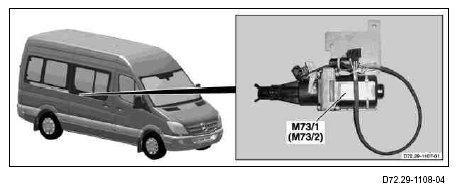

The right sliding door drive and left sliding door drive are located in the center in the lower area of the corresponding electric load compartment sliding door (E-LST). They are connected to the corresponding E-LST with the center carriage.

Task

The right or left sliding door drive should move the corresponding ELST from the closed to the open position, after the lock is released. It is still required to move the corresponding E-LST from the open to the closed position.

Hall sensor

The 2 internal Hall sensors have the task to signal the exact position of E-LST to the right sliding door control unit (N69/6) or left sliding door control unit (N69/7).
