GF72.29-D-4013H Sliding Door Button, Component Description

GF72.29-D-4013H Sliding Door Button, Component Description



- with CODE (T55) Electrical actuation for right sliding door
- with CODE (T56) Electrical actuation for left sliding door


- with CODE (T50) Electrical closing assist for right sliding door

- with CODE (T51) Electrical closing assist for left sliding door

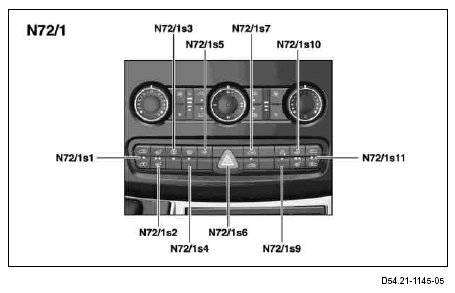

N72/1 OBF control unit
N72/1s1 Left sliding door button
N72/1s11 Right sliding door button

Location

The left or right sliding door button is located in the OBF control unit. They can each have two function positions and one non-actuated position

Task

Each left or right sliding door button on vehicles with electric load compartment sliding door (E-LST) has the following tasks:
- Button momentarily actuated upward (< 2 s):
- E-LST closed automatically

- Button actuated upward (> 2 s):
- E-LST closes manually

- No actuation:
- E-LST in non-actuated state

- Button momentarily actuated downward (< 2 s):
- E-LST closes automatically

- Button actuated downward (> 2 s):
- E-LST opens manually
