GF72.29-D-2012HB Actuate Electric Load Component Sliding Door (E-LST), Function

GF72.29-D-2012HB Actuate electric load component sliding door (E-LST), function

- with CODE (T55) Electrical actuation for right sliding door Transmitter key


- with CODE (T56) Electrical actuation for left sliding door Transmitter key

Opening is not possible if the voltage is too high or too low.

Opening sequence:
- Actuate transmitter button "Unlock sliding door, rear-end door and open/close sliding door" once for longer than 0.5 s
- EIS control unit (N73) transmits to STR control unit (N69/6) or STL control unit (N69/7) the signal "Unlock sliding door, rear-end door and open/close sliding door transmitter button actuated"

- STR control unit or STL control unit to opening assist
- Signal "Open E-LST lock"

- Electric load compartment sliding door lock (E-LST) to STR control unit or STL control unit
- Signal "Lock actuated" on right sliding door CL rotary tumbler switch (M14/27s1) or left sliding door CL rotary tumbler switch (M14/28s1)

- STR door control unit or STL door control unit to right sliding door drive (M73/1) or left sliding door drive (M73/2)
- The right sliding door drive or left sliding door drive move the E-LST in the "E-LST open" position

The anti-pinch protection is active during the complete opening path.

Closing is not possible if the voltage is too high or too low.

Closing sequence:
- Transmitter button "Unlock sliding door, rear-end door and open/close sliding door" actuated once for longer than 0.5 s
- EIS control unit transmits to right sliding door control unit or left sliding door control unit the signal "Unlock sliding door, rear-end door and open/close sliding door transmitter button actuated"

- STR door control unit or STL control unit to right sliding door drive or left sliding door drive
- The right sliding door drive or left sliding door drive move the E-LST in the "E-LST closed" position

- E-LST lock to STR control unit or STL control unit
- Signal "Door closed" of right sliding door CL rotary tumbler switch or left sliding door CL rotary tumbler switch to right sliding door control unit or to left sliding door control unit

The anti-pinch protection is active up to the pre-locking position.

Actuate transmitter button "Unlock sliding door, rear-end door and open/close sliding door" when E-LST is active

The E-LST stops when the transmitter button "Unlock sliding door, rear-end door and open/close sliding door" is actuated again.

If the transmitter button "Unlock sliding door, rear-end door and open/ close sliding door" is reactuated for longer than 0.5 s, the E-LST moves opposite the original direction (reverses).

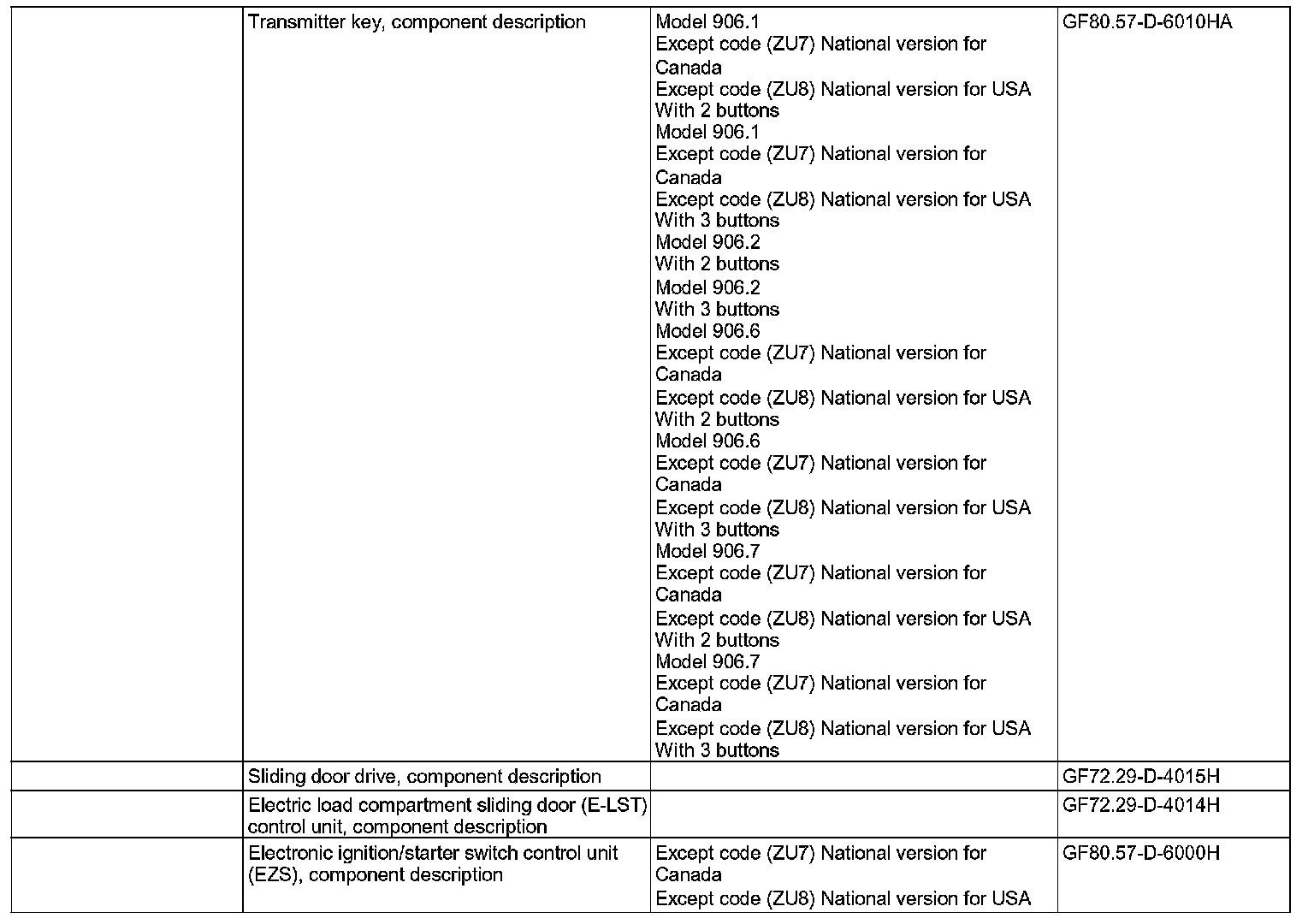

It is only possible to actuate one E-LST with the transmitter button "Unlock sliding door, rear-end door and open/close sliding door" in the transmitter key (A8/1) (parameterizable).
