Center Sliding Door Rail: Service and Repair

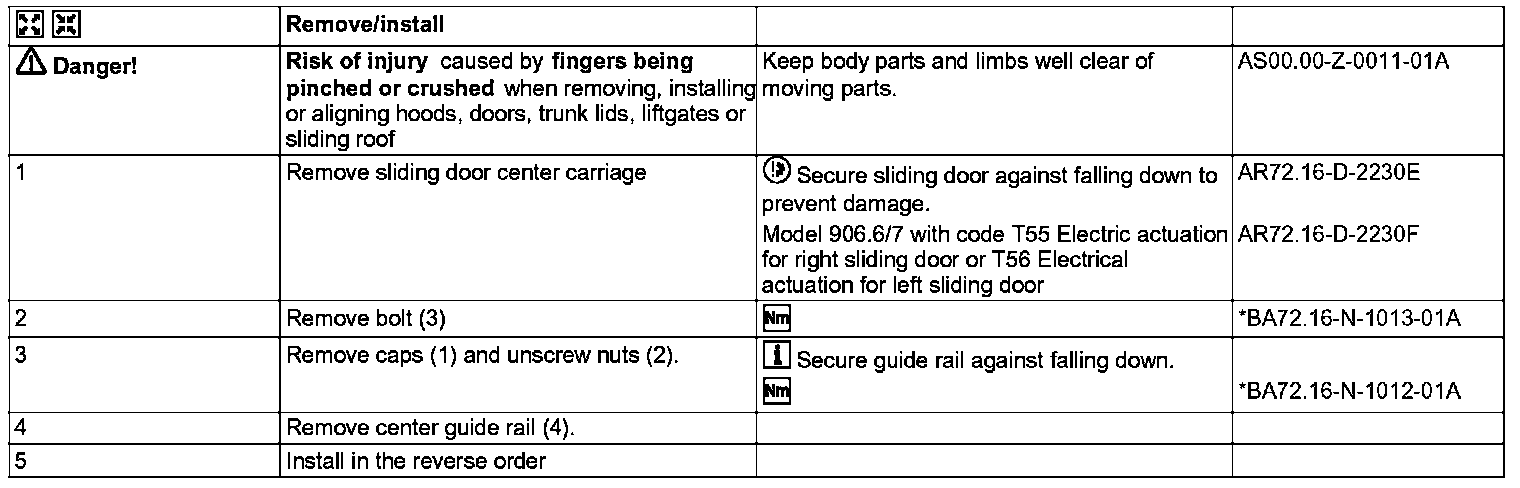

AR72.16-D-7806A Remove/Install Center Guide Rail For Sliding Door

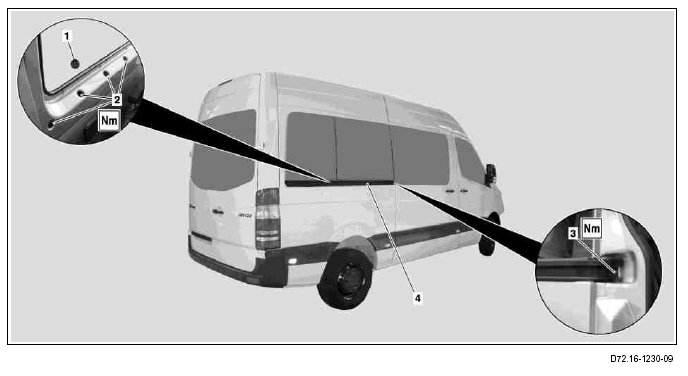

Shown: High roof version

1 Cap
2 Nut
3 Screw
4 Guide rail in center
