Home >> Mercedes Benz Truck >> 2010 >> Sprinter 3500 Panel (906.653) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Sliding Door >> Adjustments >> AR72.16-D-1023F Adjust Sliding Door

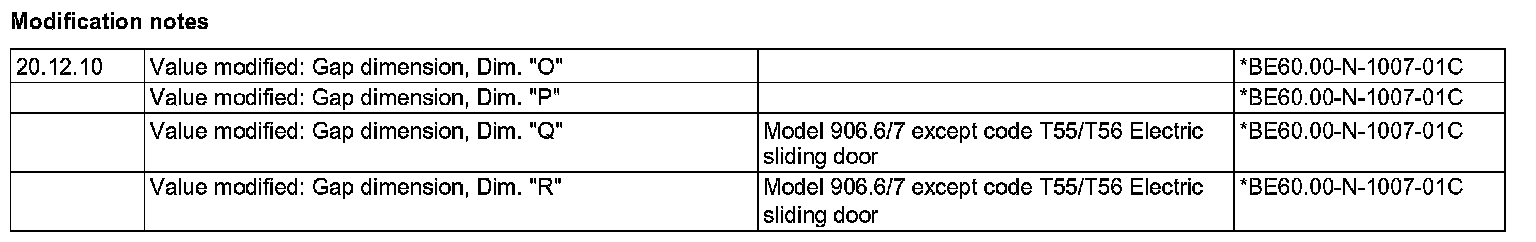

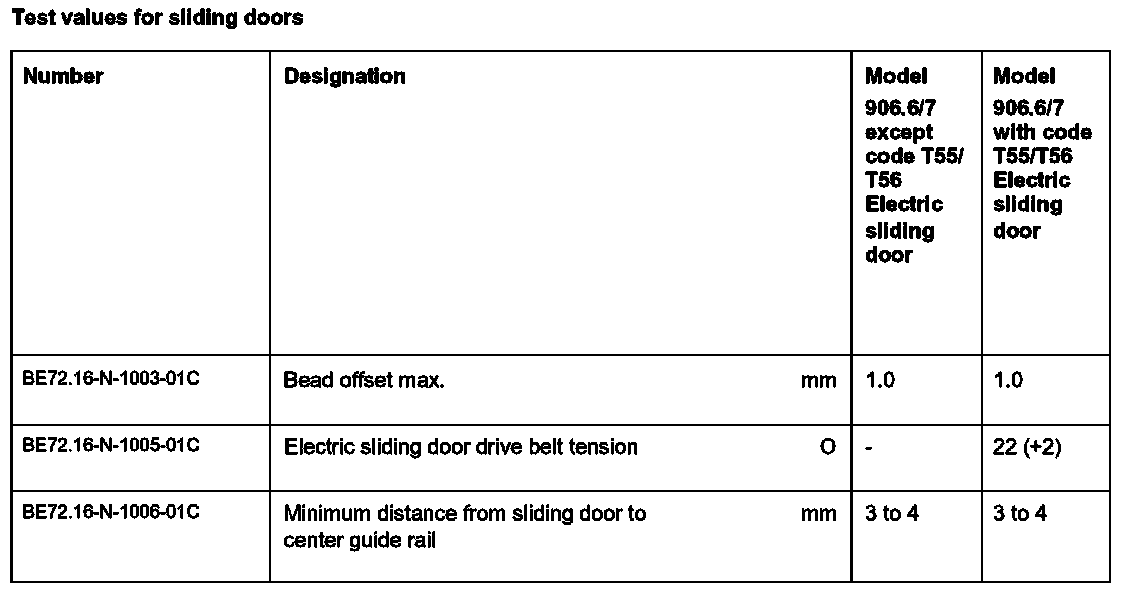

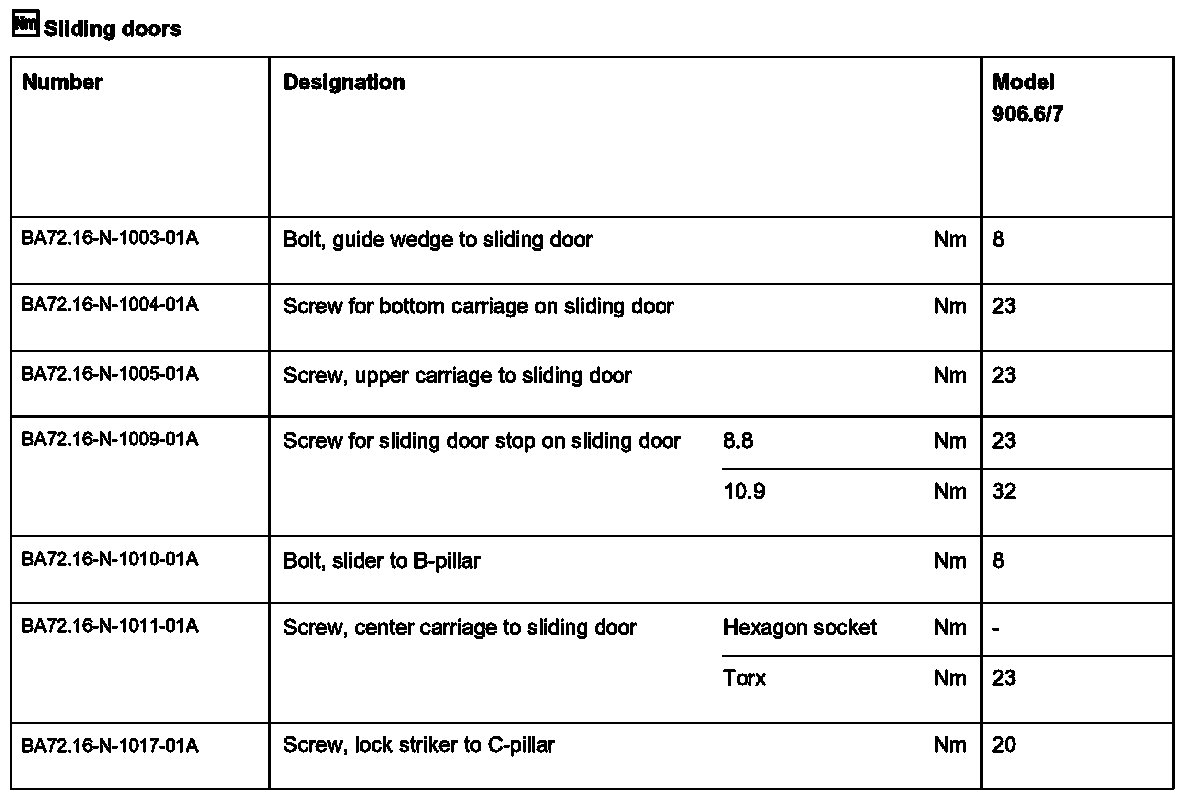

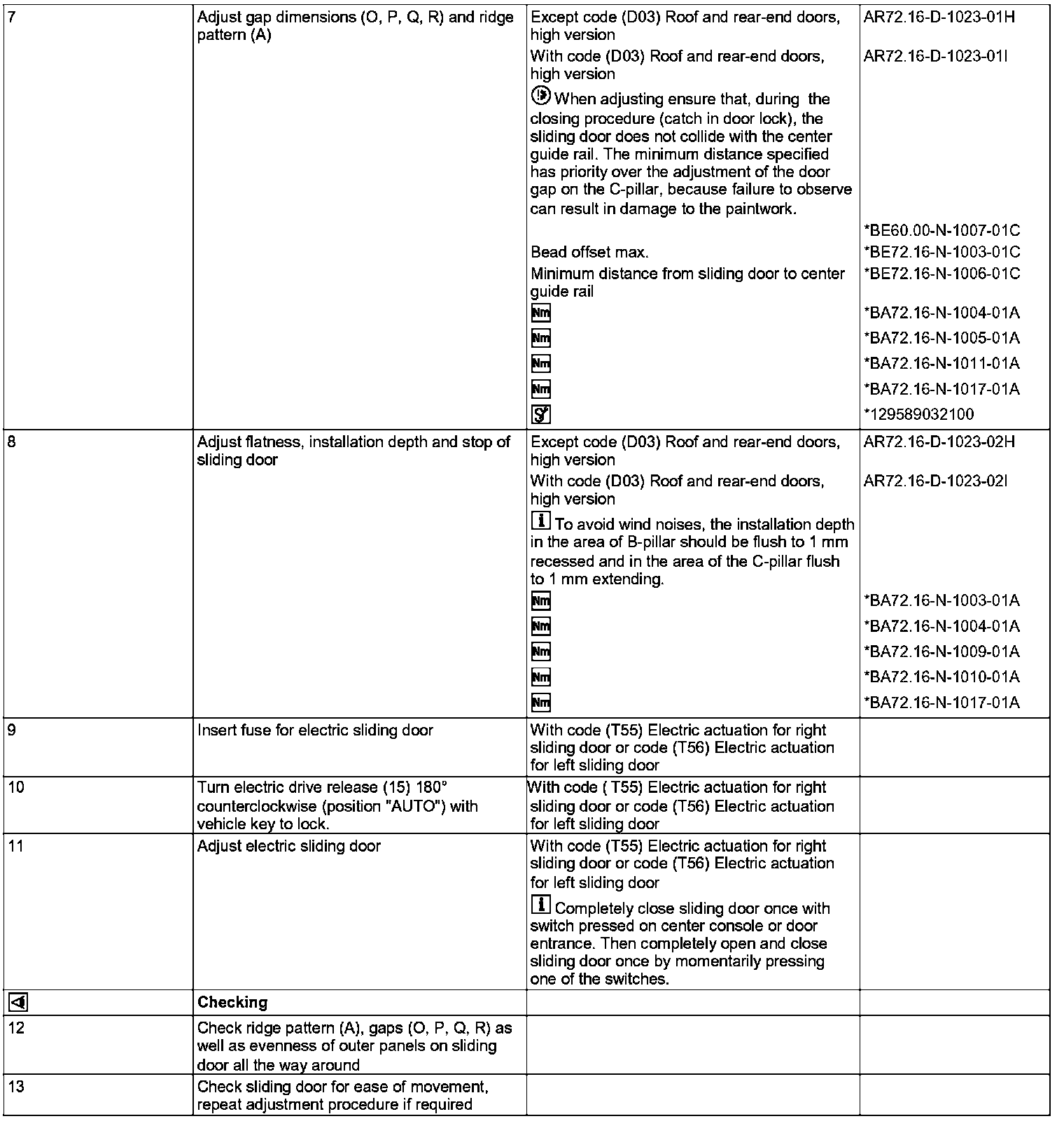

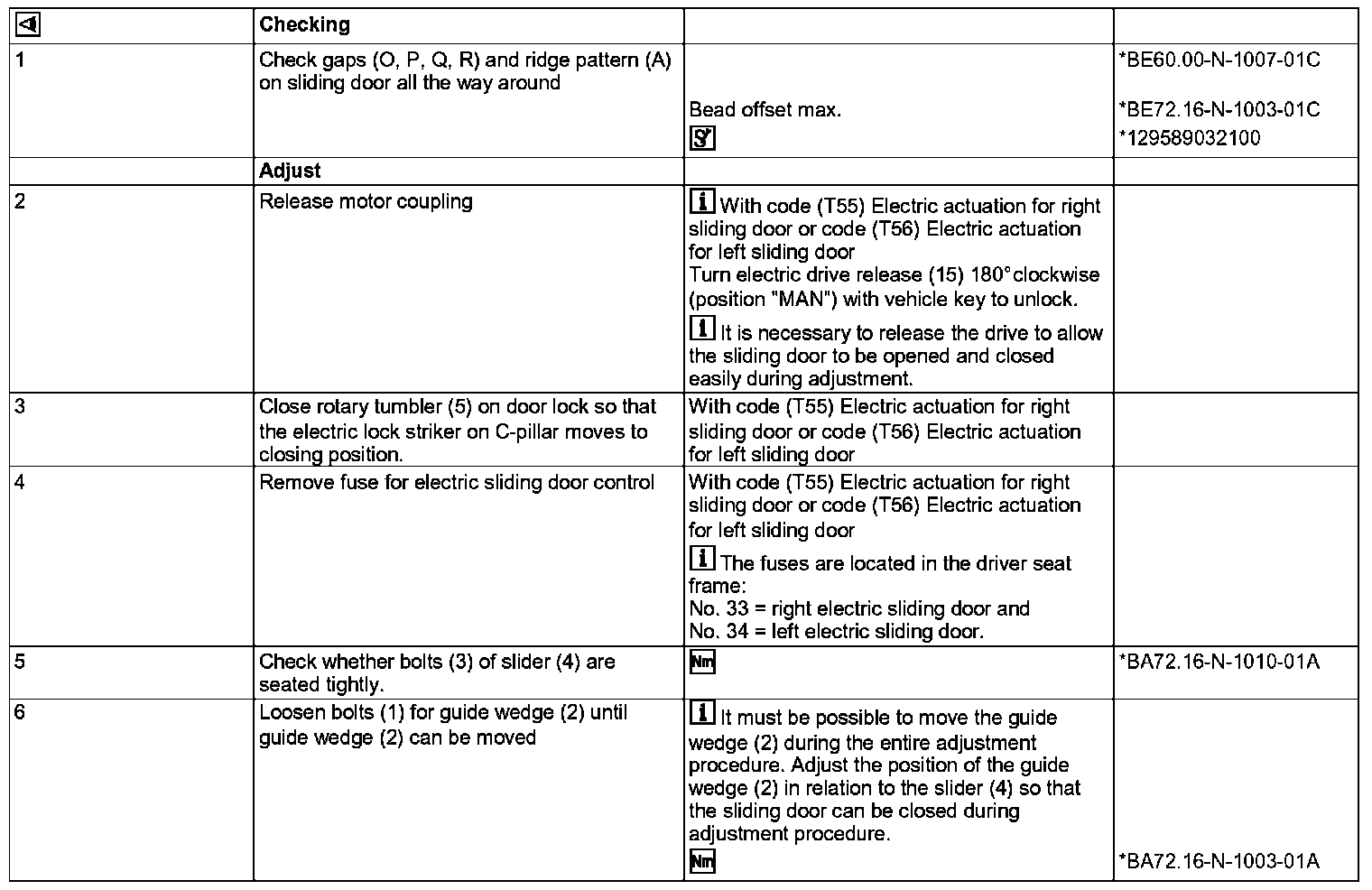

AR72.16-D-1023F Adjust Sliding Door




AR72.16-D-1023F Adjust Sliding Door

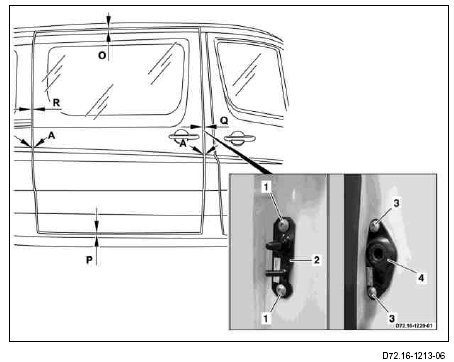

A Ridge pattern

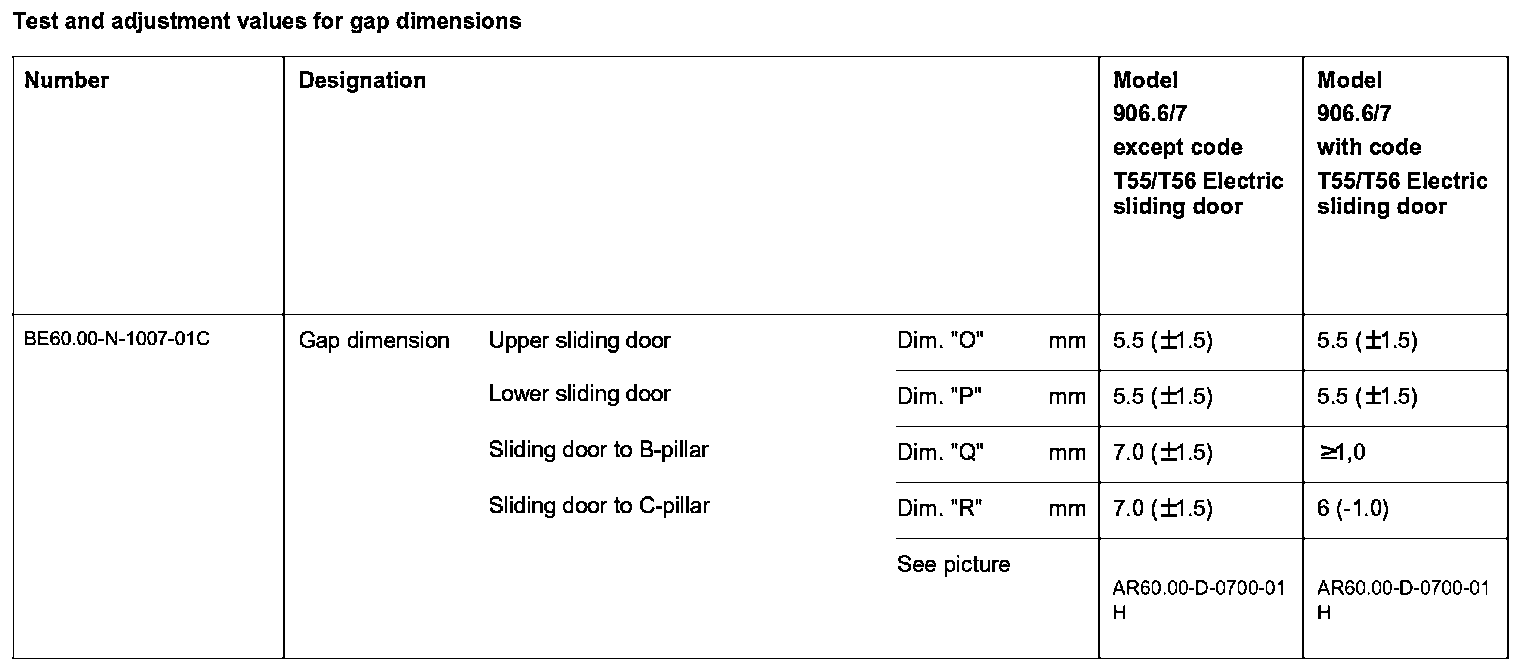

O Gap
P Gap
Q Gap
R Gap










5 Rotary tumbler
15 Electric drive release






















129 589 03 21 00, Feeler gauge
