Rear Door Hinge: Service and Repair

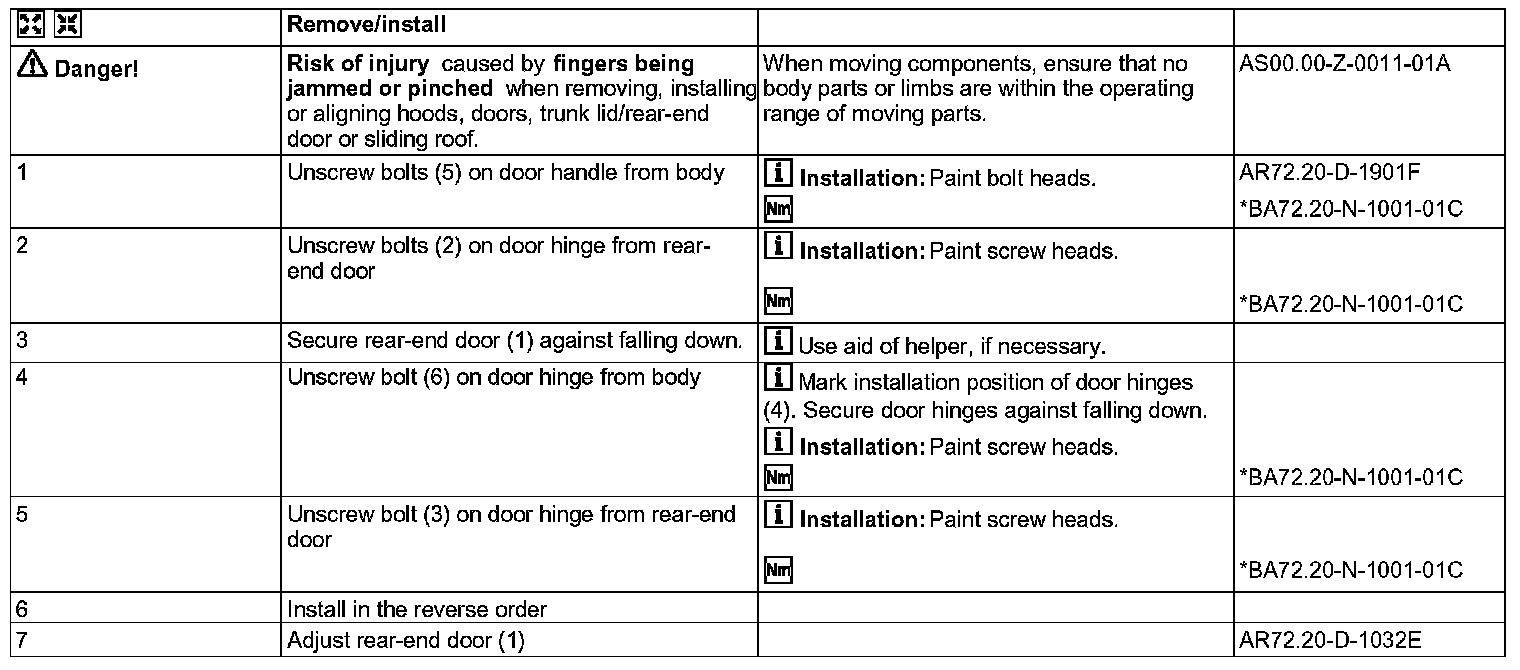

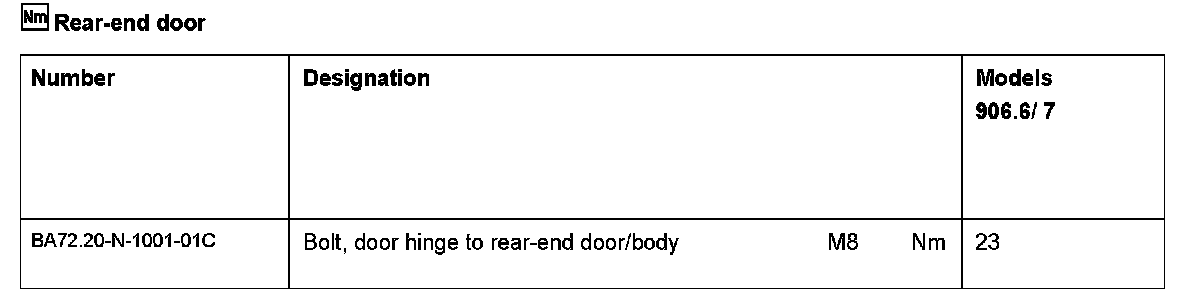

AR72.20-D-2650A Remove/Install Rear-End Door Hinge











1 Rear-end door
2 Bolts
3 Bolt
4 Door hinges
5 Bolts
6 Bolt
