AZ54.65-D-0001NA Retrofit Ultrasonic Backup Assist




AZ54.65-D-0001NA Retrofit Ultrasonic Backup Assist


With partition wall

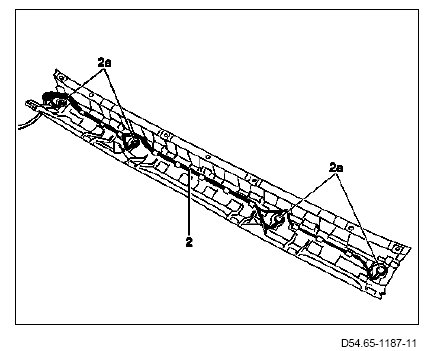

2 Wiring harness for ultrasonic backup assist sensors
2a Ultrasonic backup assist sensors







3 Ultrasonic backup assist control unit
