AZ54.65-D-0001-15N Fabricate Template For Drilling Points For Backup Assist Sensors

AZ54.65-D-0001-15N Fabricate Template For Drilling Points For Backup Assist Sensors

Application
1 Determine dimension "c" or "d" from the drawing.
2 Determine the scaling factor:
Dimension C
------------------- = x
Dimension determined

3 Copy template with factor "x" determined to original size.
Carry out dimensional check on both axes

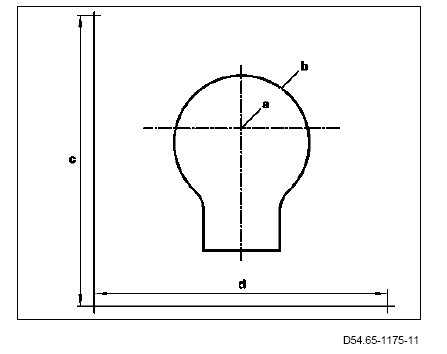

Template
a Drilling point
b Cutout contour
c 100 mm
d 100 mm
