GF54.65-D-0001-02H Parktronic System (PTS), Location of Components

GF54.65-D-0001-02H Parktronic System (PTS), Location Of Components

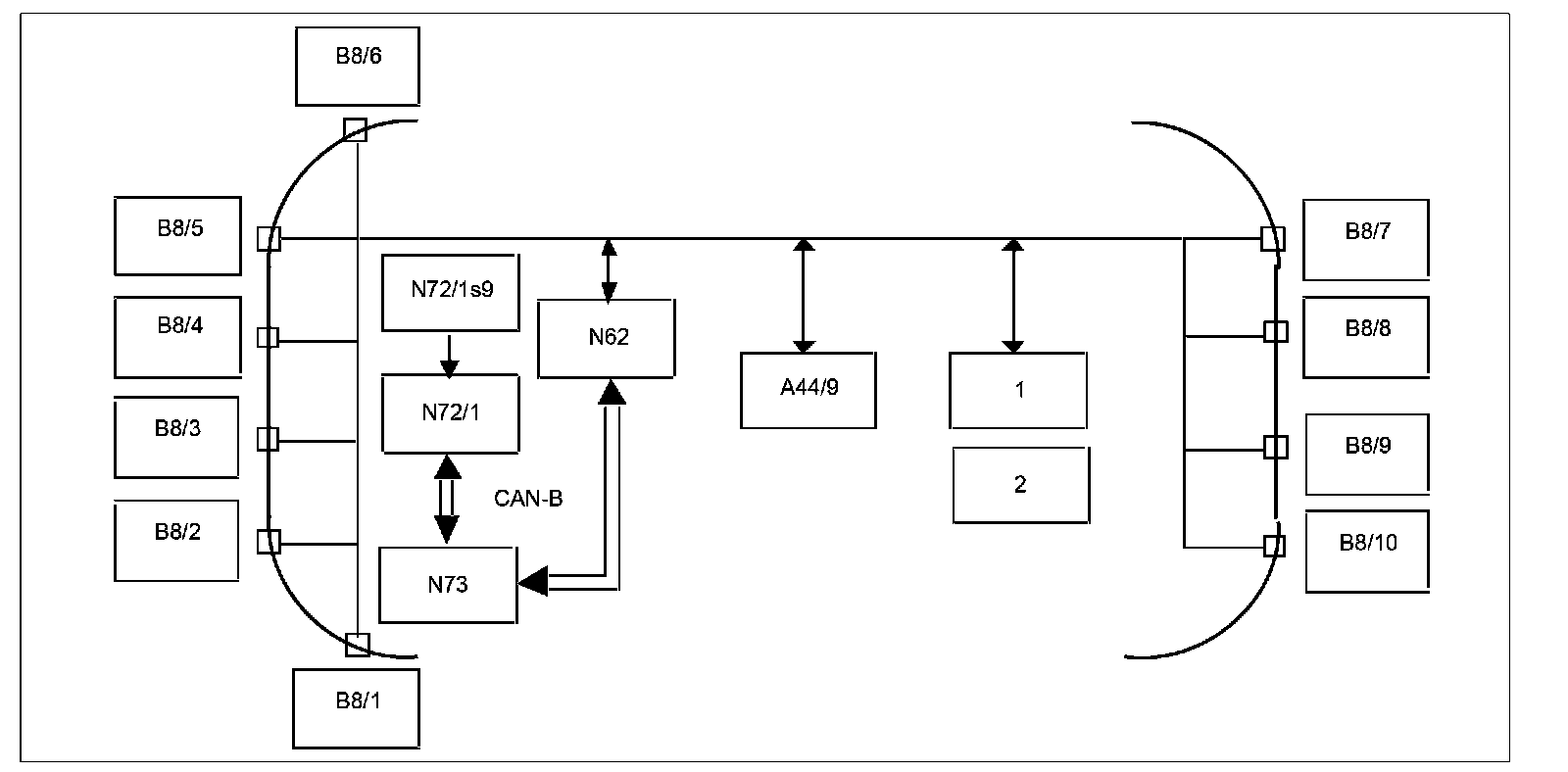

- with CODE (EZ8) Parktronic system (PTS)







1 Left front Parktronic warning indicator
2 Right front Parktronic warning indicator
A44/9 Center front PTS warning element
B8/1 Outer left front Parktronic sensor
B8/2 Center left front Parktronic sensor
B8/3 Inner left front Parktronic sensor
B8/4 Inner right front Parktronic sensor
B8/5 Center right front Parktronic sensor
B8/6 Outer right front Parktronic sensor
B8/7 Outer right rear Parktronic sensor
B8/8 Inner right rear Parktronic sensor
B8/9 Inner left rear Parktronic sensor
B8/10 Outer left rear Parktronic sensor
N62 PTS control unit
N72/1 OBF control unit
N72/1s9 PTS OFF button
N73 EIS [EZS] control unit
