Windshield Washer Reservoir: Service and Repair

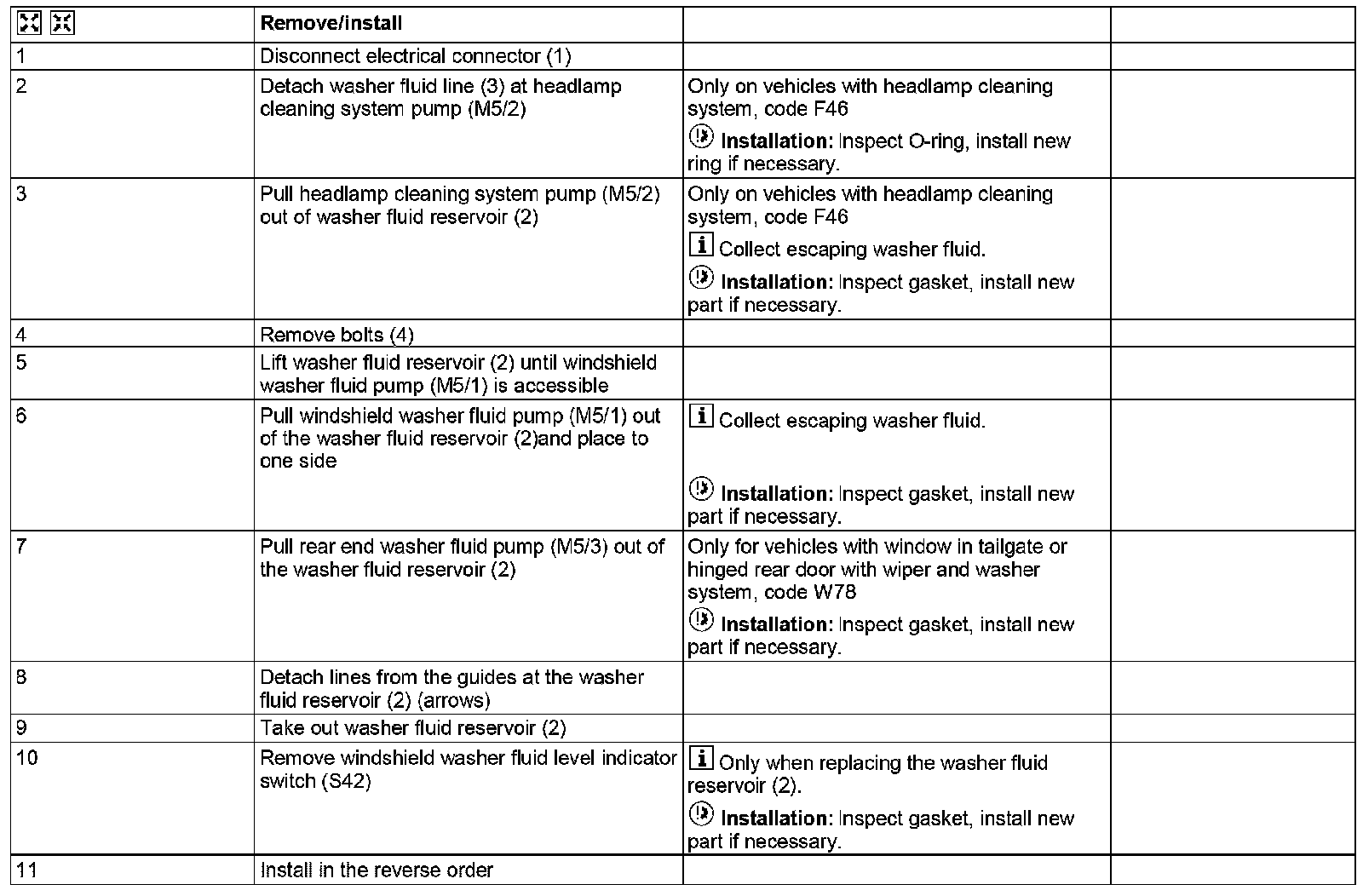

AR82.35-D-6000SD Remove/Install Washer Fluid Reservoir Of Windshield Washer System








1 Electrical connector
2 Washing water reservoir
3 Washer fluid line (for headlamp cleaning system, code F46)
4 Bolts
M5/1 Windshield washer fluid pump
M5/2 Headlamp cleaning system pump (for headlamp cleaning system, code F46)
M5/3 Rear end washer fluid pump (for window in tailgate or hinged rear door with wiper and washer system, code W78)
S42 Windshield washer fluid level indicator switch
