Removal and Replacement

AR26.45-D-0015-03A Install Power Take-off Bearing Cap
- TRANSMISSION 711.651
- with CODE (N07) Power take-off countershaft (2b) with flange
- TRANSMISSION 711.660
- with CODE (N07) Power take-off countershaft (2b) with flange









711 589 11 15 00
Drift

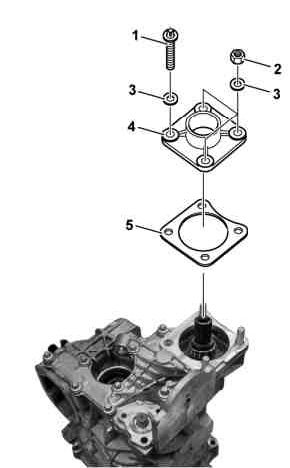

1 Insert shim (6) with determined thickness in the bearing cap (4).
2 Press in new bearing race all the way using drift (7).





3 Fit bearing cap (4) with new seal (5).
4 Attach washers (3) and tighten nuts (2) and bolt (1),.
