AR26.45-D-0016B Disassemble/Assemble PTO

AR26.45-D-0016B Disassemble/Assemble PTO

- TRANSMISSION 711.680 in MODEL 906
- with CODE (N05) Power take-off countershaft (2c) without flange
- TRANSMISSION 711.680 in MODEL 906
- with CODE (N07) Power take-off countershaft (2b) with flange
- TRANSMISSION 711.685 in MODEL 906
- with CODE (N05) Power take-off countershaft (2c) without flange
- TRANSMISSION 711.685 in MODEL 906
- with CODE (N07) Power take-off countershaft (2b) with flange

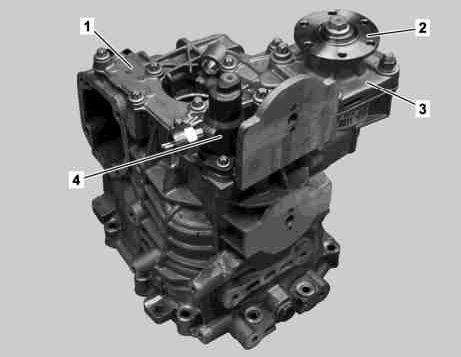

Shown on transmission 711.680 with CODE (N07) Power take-off countershaft (2b) with flange

1 Housing cover
2 Output flange
3 Bearing cap
4 Shift cylinder

















000 589 34 33 00
Counter stay





000 589 29 33 00
Internal puller





716 589 03 33 00
Extraction claw





355 589 01 63 00
Impact extractor





000 589 27 33 00
Internal puller





000 589 33 33 00
Counter stay





711 589 11 15 00
Drift





000 589 59 63 00
Strip clamp





168 589 03 21 00
Parallel support
