AR26.45-D-0010-06A Remove/Disassemble Power Take-Off Bearing Cap

AR26.45-D-0010-06A Remove/Disassemble Power Take-off Bearing Cap
- TRANSMISSION 711.651
- with CODE (N07) Power take-off countershaft (2b) with flange
- TRANSMISSION 711.660
- with CODE (N07) Power take-off countershaft (2b) with flange






000 589 34 33 00
Counter stay





000 589 29 33 00
Internal puller

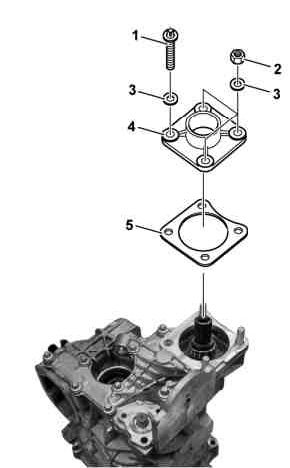

1 Unscrew bolts (1) and nuts (2) and take off with washers (3).
2 Remove bearing cap (4) and gasket (5).





3 Remove bearing race (7) using internal extractor and counter stay.
4 Remove shim (6).
