Transmission Cooler: Service and Repair

SM26.55-D-0001AK Retrofit Additional Oil Cooler
- TRANSMISSION 711.651 /660 in MODEL 906
- with CODE (GK4) preinstallation for transmission cooling

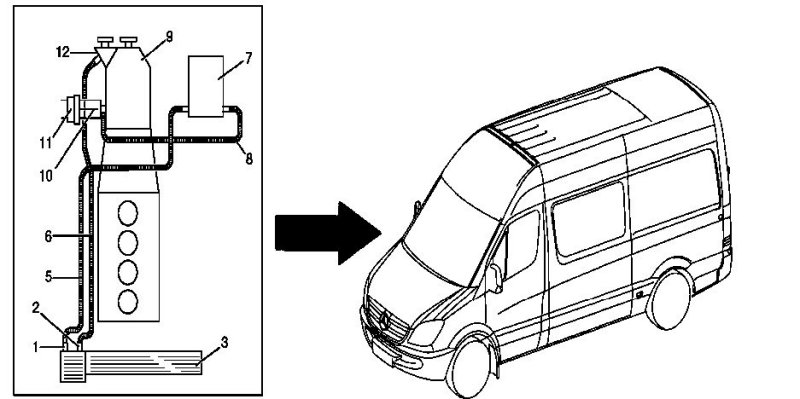

1 Feed line
2 Return flow pipe
3 Radiator
5 Flexible feed line
6 Flexible return line
7 Oil pump
8 Flexible suction line
9 Transmission
10 Adapter

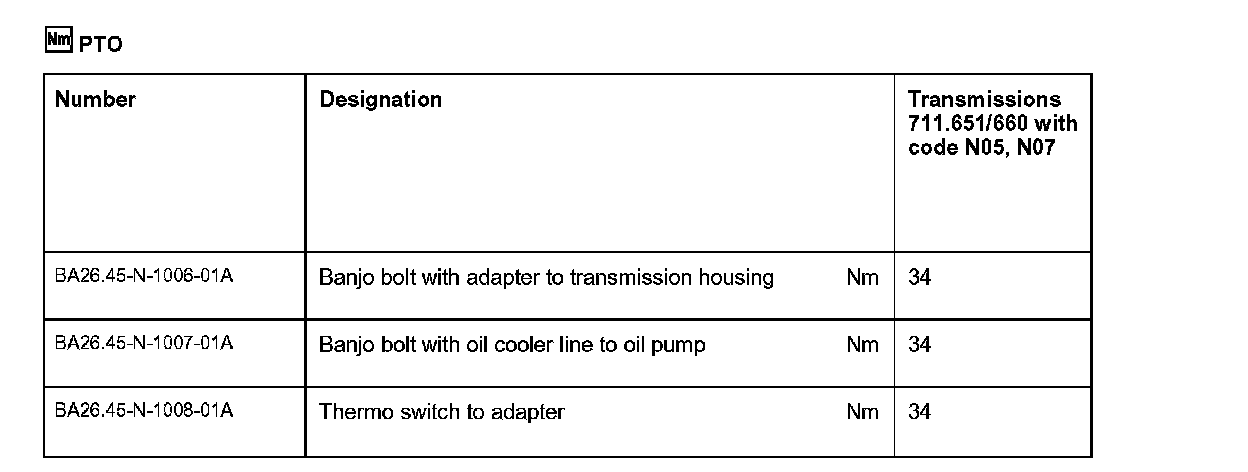

11 Thermo-switch
12 PTO





1 Feed line
2 Return flow pipe
3 Radiator
4 Retaining clip























220 589 01 99 00
Cable harness repair kit
