Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Shift Linkage
>>
Shift Cable
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement

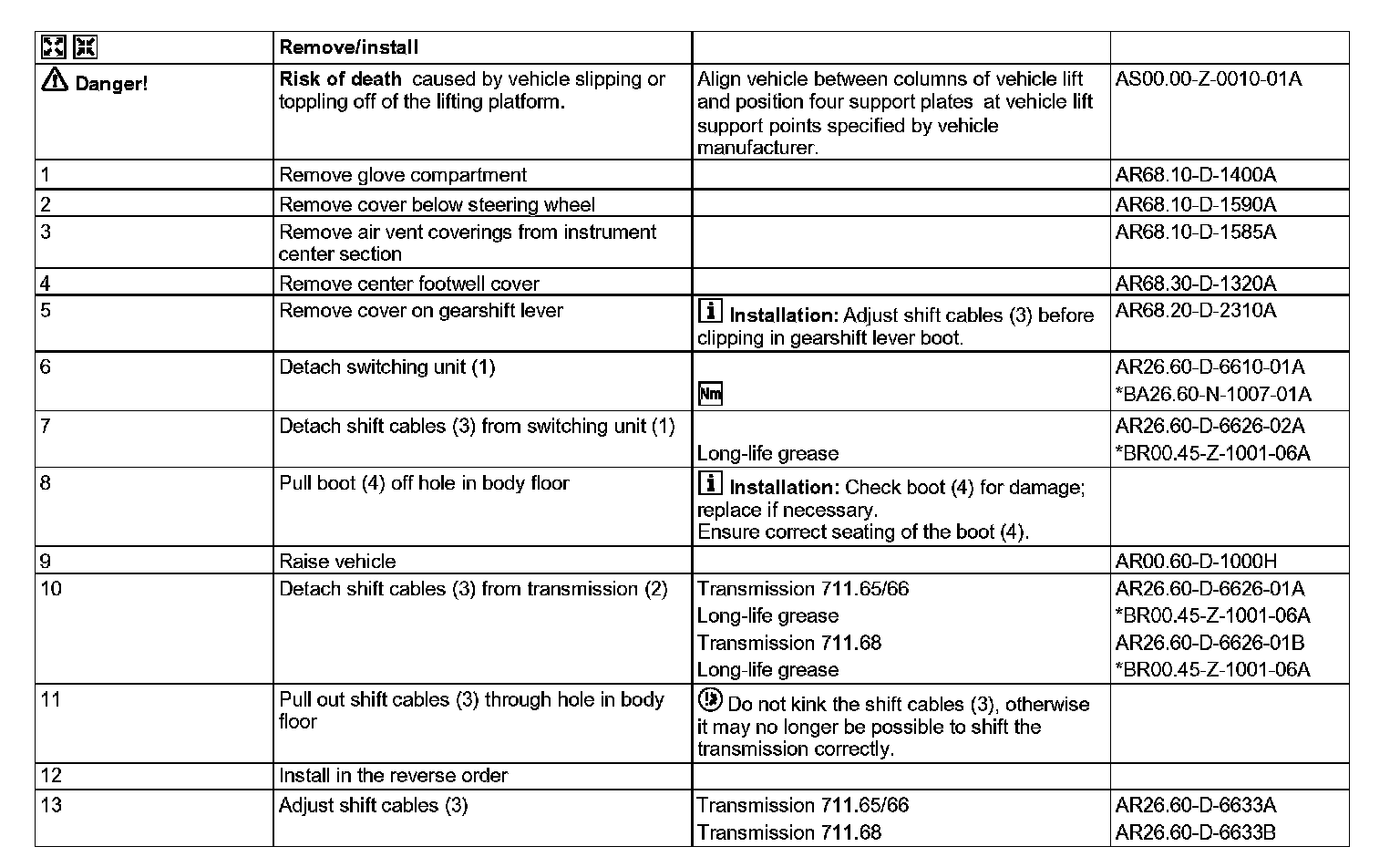

AR26.60-D-6626B Remove/Install Shift Cables
-
TRANSMISSION 711.680 in MODEL 906
-
TRANSMISSION 711.685 in MODEL 906

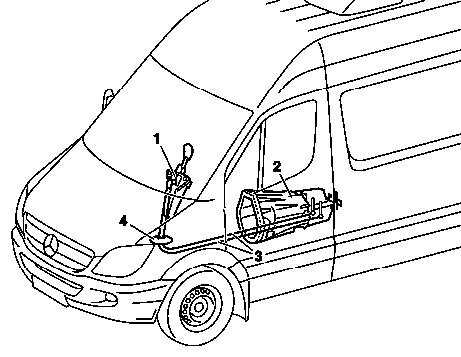

1
Shift device
2
Transmission
3
Shift cables
4
Boot
