Procedures

AR26.60-D-6626-01B Detach/Attach Shift Cables At Transmission
- TRANSMISSION 711.680/685

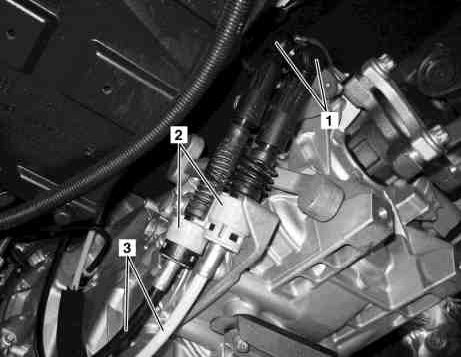

1 Detach ball heads (1) from transmission.

Install: Grease ball heads (1).

2 Slide sleeves (2) downward and remove shift cables (3) from transmission.
3 Hang up shift cables (3) to one side.
4 Install in the reverse order.
