AR26.50-D-4775F Disassemble, Assemble Countershaft

AR26.50-D-4775F Disassemble, Assemble Countershaft
- TRANSMISSION 711.680 in MODEL 906
- TRANSMISSION 711.685 in MODEL 906

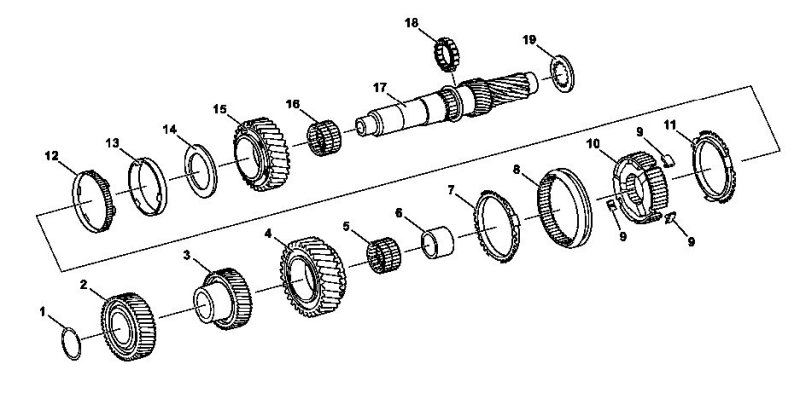

1 Retaining ring
2 Constant-mesh gear
3 3rd gear drive gear
4 6th gear idler gear
5 6th gear needle roller bearing
6 Bearing sleeve
7 Synchronizer ring
8 Sliding sleeve
9 Thrust piece
10 Synchronizer body
11 Synchronizer ring
12 Cone ring (only transmission 711.685)
13 Friction ring (only transmission 711.685)
14 Shim (only transmission 711.685)
15 5th gear idler gear
16 5th gear needle roller bearing
17 Countershaft
18 Roller bearing intermediate plate (only transmission 711.685)
19 Oil guide ring








366 589 02 15 00
Drift





711 589 17 15 00
Drift





716 589 02 33 00
Sleeve
