AR26.50-D-4775-02B Disassemble Countershaft

AR26.50-D-4775-02B Disassemble Countershaft
- TRANSMISSION 711.680/685





366 589 02 15 00
Drift








1 Remove oil guide ring (19).
2 Remove circlip (1).
3 Press off constant mesh gear (2) using drift.

Workshop press
gotis://G_58.2_01.0

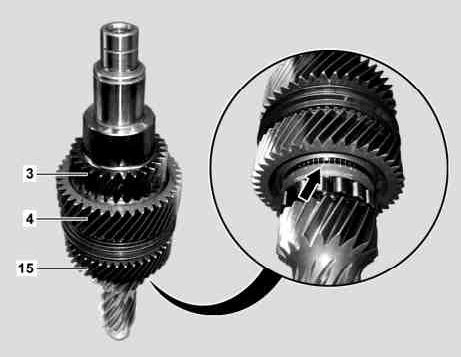

4 Press off 5th gear idler gear (15) together with synchronizer unit, 6th gear idler gear (4) and 3rd gear fixed gear (3).

Workshop press
gotis://G_58.2_01.0

Do not damage the shoulder on the countershaft (arrow) when pressing out. The countershaft must be replaced if the shoulder is damaged.

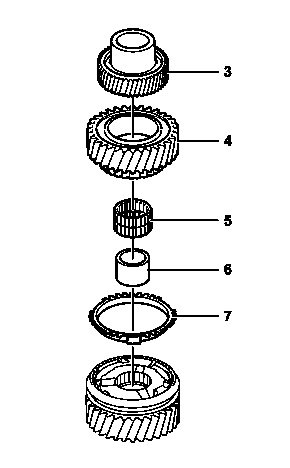

5 Remove 3rd gear fixed gear (3), 6th gear idler gear (4) and 6th gear needle roller bearing (5).
6 Remove bearing sleeve (6) and synchronizer ring (7).

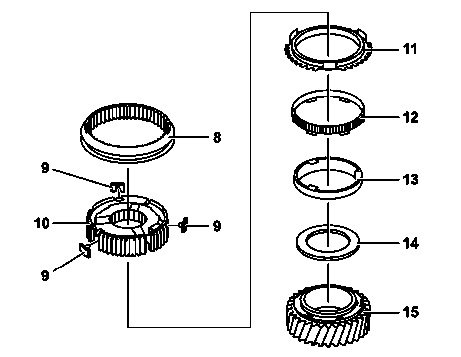

7 Remove sliding sleeve (8) and thrust pieces (9).
8 Remove synchronizer body (10) and synchronizer ring (11).
9 Remove cone ring (12), friction ring (13) and shim (14).

Only transmission 711.685.

10 Remove 5th gear idler gear (15).





11 Remove 5th gear needle roller bearing (16).
12 Remove split roller bearing intermediate plate (18).

Only transmission 711.685.
