AR26.50-D-0002-02A Remove Main- and Countershaft With Shift Unit From Support Fixture

AR26.50-D-0002-02A Remove Main- and Countershaft With Shift Unit From Support Fixture
- TRANSMISSION 711.680/685





711 589 03 40 00
Support fixture








Shown on transmission 711.685

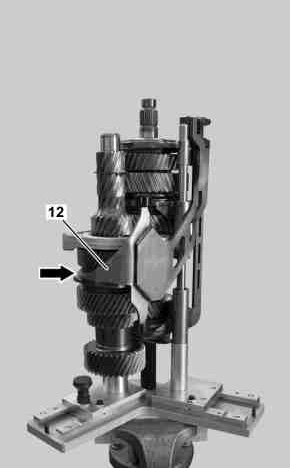

1 Disconnect shift fork (12) from sliding sleeve (arrow).

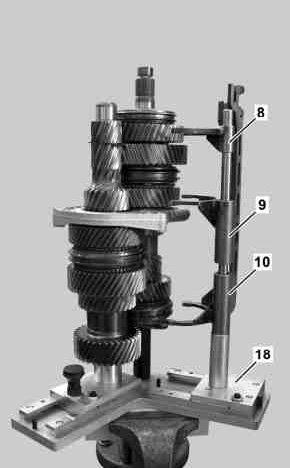

2 Slide the support slide (18) outwards as far as the end stop.
3 Remove shift forks (8, 9, 10).





Shown on transmission 711.685

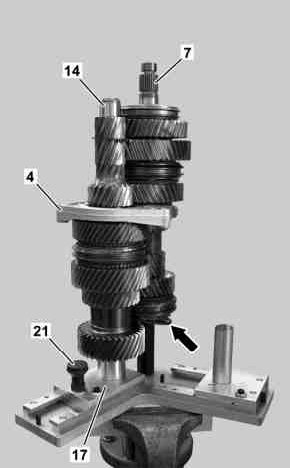

4 Release fastening device (21) and slide support slide (17) outwards up to the end shop with countershaft (14).

Hold synchronizer ring, cone ring, friction ring and the clutch body (arrow) when pulling out the support slide (17) so that they do not fall down and become damaged in the process..

5 Only transmission 711.685:

Remove intermediate plate (4).

6 Remove countershaft (14) and main shaft (7) from support fixture.
