AR26.45-D-0010-07C Remove Gear Set and Shift Mechanism of Power Take-Off

AR26.45-D-0010-07C Remove Gear Set and Shift Mechanism of Power Take-off
- TRANSMISSION 711.651
- with CODE (N05) Power take-off countershaft (2c) without flange
- TRANSMISSION 711.651
- with CODE (N07) Power take-off countershaft (2b) with flange






716 589 03 33 00
Extraction claw





355 589 01 63 00
Impact extractor





000 589 34 33 00
Counter stay





000 589 29 33 00
Internal puller





000 589 27 33 00
Internal puller





000 589 33 33 00
Counter stay





Shown on transmission 711.680

1 Unscrew bolts (1) and remove the housing cover (2).
2 Only with CODE (N07) Power take-off countershaft (2b) with flange: Remove output shaft (4) and distance ring (3).





Shown on transmission 711.680

3 Remove washer (5) and intermediate gear (6).
4 Remove bearing (7) and washer (8).
5 Screw in a hexagon head bolt M8 approx. 2 cm in the pin (9).
6 Remove the pin (9) with extraction claw and impact extractor and unscrew hexagon head bolt again.
7 Only with CODE (N07) Power take-off countershaft (2b) with flange: Remove bearing race (10) with internal extractor and counter stay.





Shown on transmission 711.680

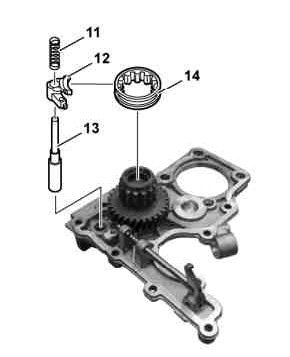

8 Remove spring (11).
9 Remove shift dog (12) and sliding sleeve (14).
10 Remove shift rod (13).





Shown on transmission 711.680

11 Remove drive shaft (15) with drive gear (16).
12 Remove cylindrical roller bearing (17) using internal extractor and counter stay.





13 Press out drive shaft (15) using a suitable drift.
14 Remove bushing (19), washer (18), drive gear (16) and the needle roller bearing (20).





15 Only with CODE (N07) Power take-off countershaft (2b) with flange: Press tapered roller bearing (21) off output shaft (4).
