AR26.40-D-2476E Disassemble/Assemble Rear Section of Transmission Housing

AR26.40-D-2476E Disassemble/Assemble Rear Section of Transmission Housing
- TRANSMISSION 711.680 in MODEL 906
- TRANSMISSION 711.685 in MODEL 906

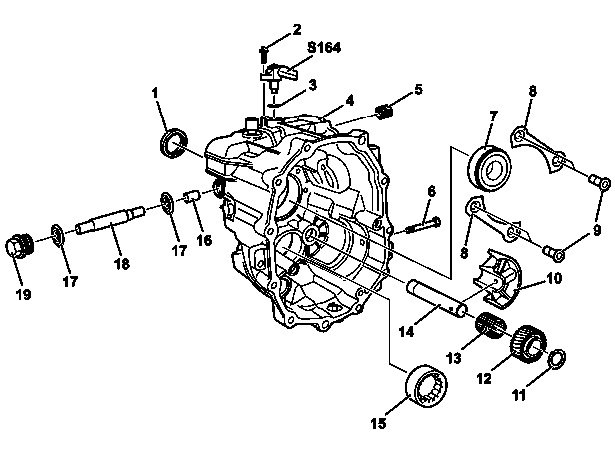

1 Radial shaft seal
2 Screw
3 O-ring
4 Rear section of transmission housing
5 Bearing
6 Screw
7 Bearing
8 Locking plate
9 Bolts
10 Bearing shell
11 Thrust plate
12 Reverse gear
13 Cylindrical roller bearing
14 Reverse idler shaft
15 Bearing
16 Sleeve
17 Washer
18 Guide bolts
19 Screw plug

S164 Transmission neutral position switch (with code (MJ7) ECO Start)
