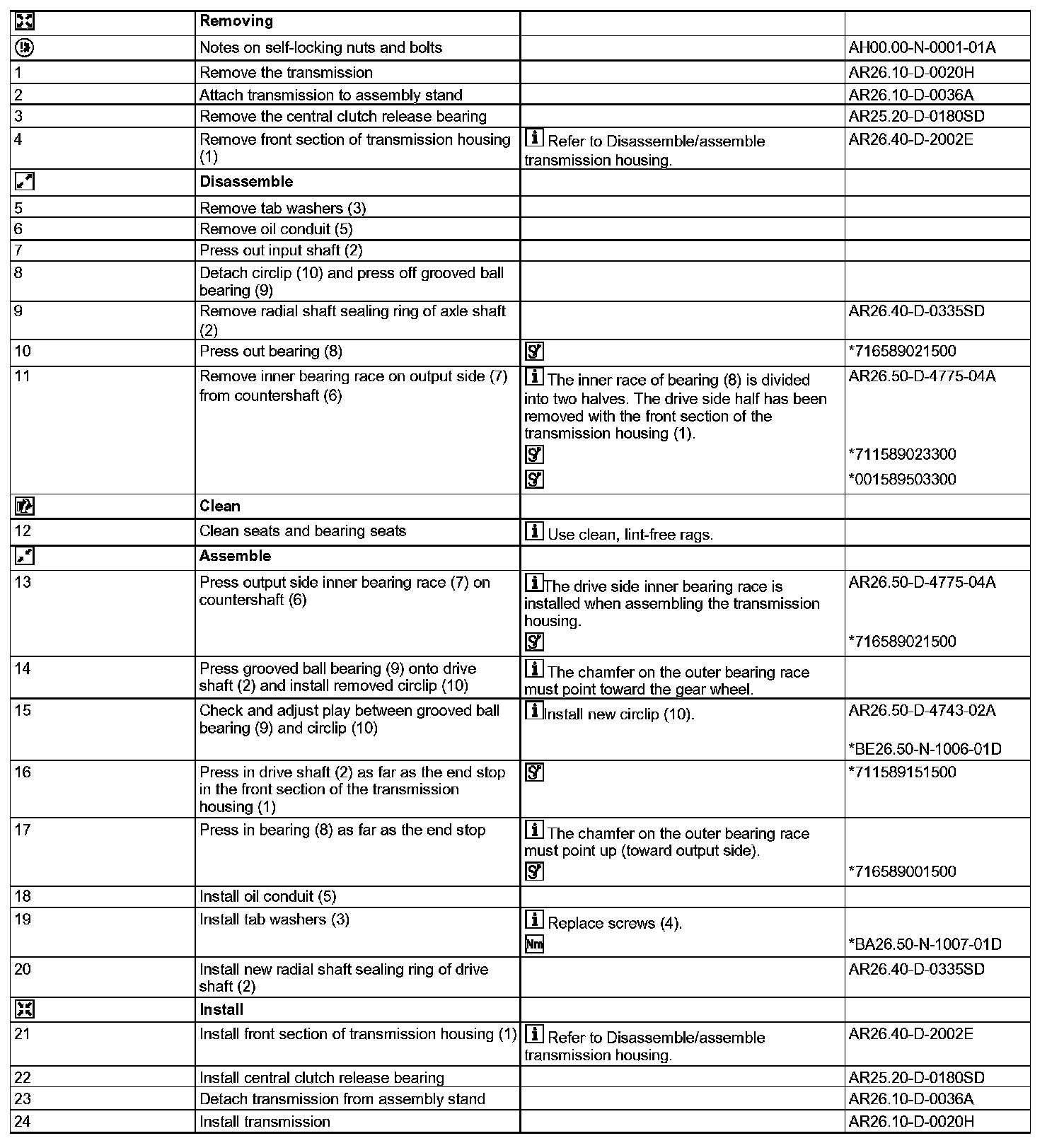

AR26.40-D-2471F Disassemble/Assemble Front Section of Transmission Housing

AR26.40-D-2471F Disassemble/Assemble Front Section of Transmission Housing
- TRANSMISSION 711.685 in MODEL 906

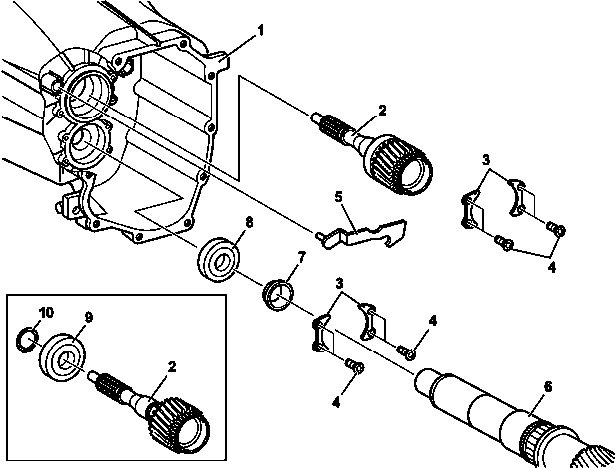

1 Front section of transmission housing
2 Input shaft
3 Locking plate
4 Screw
5 Oil guide
6 Countershaft
7 Inner bearing race
8 Bearing
9 Grooved ball bearing
10 Circlip














716 589 02 15 00
Drift





711 589 15 15 00
Drift





716 589 00 15 00
Drift





001 589 50 33 00
Puller





711 589 02 33 00
Extraction tool
