AR26.40-D-2471E Disassemble/Assemble Front Section of Transmission Housing

AR26.40-D-2471E Disassemble/Assemble Front Section of Transmission Housing

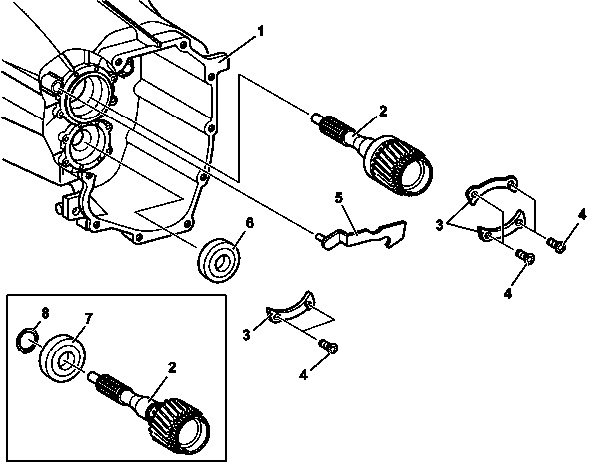

- TRANSMISSION 711.680 in MODEL 906





1 Front section of transmission housing
2 Input shaft
3 Locking plate
4 Screw
5 Oil guide
6 Bearing
7 Grooved ball bearing
8 Circlip














716 589 02 15 00
Drift





711 589 15 15 00
Drift





716 589 00 15 00
Drift
