AR26.40-D-2002E Disassemble/Assemble Transmission Housing

AR26.40-D-2002E Disassemble/Assemble Transmission Housing
- TRANSMISSION 711.680 in MODEL 906
- TRANSMISSION 711.685 in MODEL 906

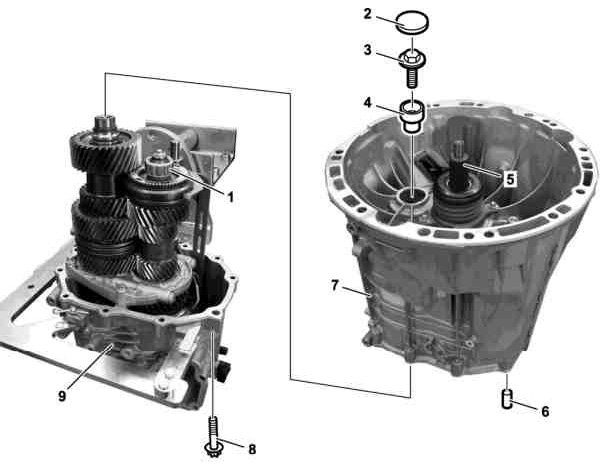

Shown on transmission 711.685

1 Roller bearing
2 Cap
3 Screw
4 Inner bearing race (only transmission 711.685)
5 Input shaft
6 Fitting sleeve
7 Front section of transmission housing
8 Screw
9 Rear section of transmission housing














716 589 00 09 00
Retainer wrench





711 589 02 33 00
Extraction tool





711 589 02 43 00
Insertion tool





124 589 05 15 00
Drift
