AR26.40-D-0330-09B Install Intermediate Plate

AR26.40-D-0330-09B Install Intermediate Plate
- TRANSMISSION 711.685

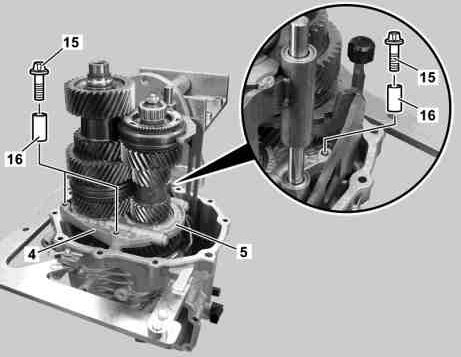

1 Insert dowel sleeves (16).

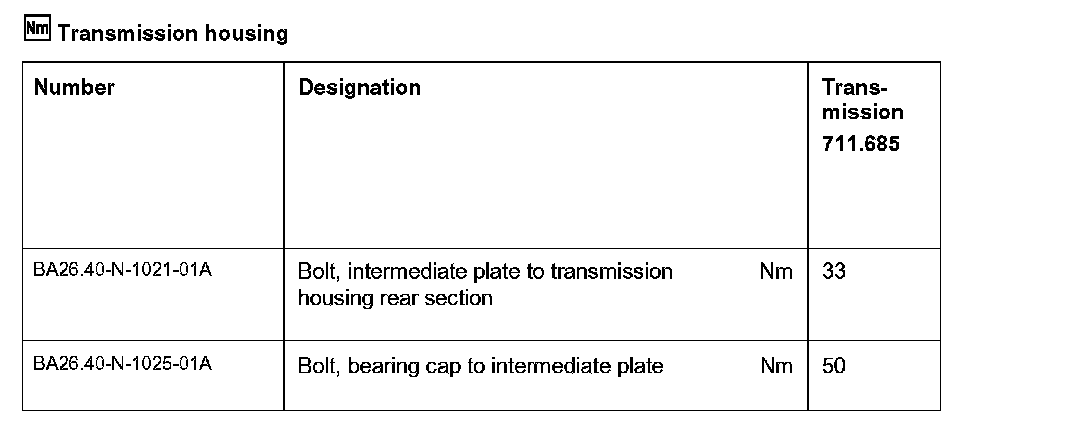

2 Secure intermediate plate (4) with bolts (15), Nm).

Always secure the intermediate plate (4) first and then the bearing cap (5); otherwise the roller bearings could be damaged.

3 Tighten bearing cap (5), Nm.
