AR26.40-D-2475-03C Remove/Install Output Flange

AR26.40-D-2475-03C Remove/Install Output Flange
- TRANSMISSION 711.680
- TRANSMISSION 711.685












000 589 65 33 00
Puller





000 589 75 09 00
Wrench socket





901 589 00 07 00
Pin wrench





Shown on transmission 711.685

Remove

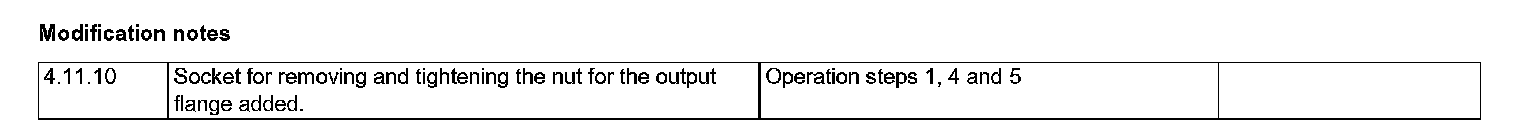

1 Counterhold output flange (2) using pin wrench and unscrew nut (1) using socket.
2 Pull off output flange (2) using puller.

Install

3 Mount output flange (2).

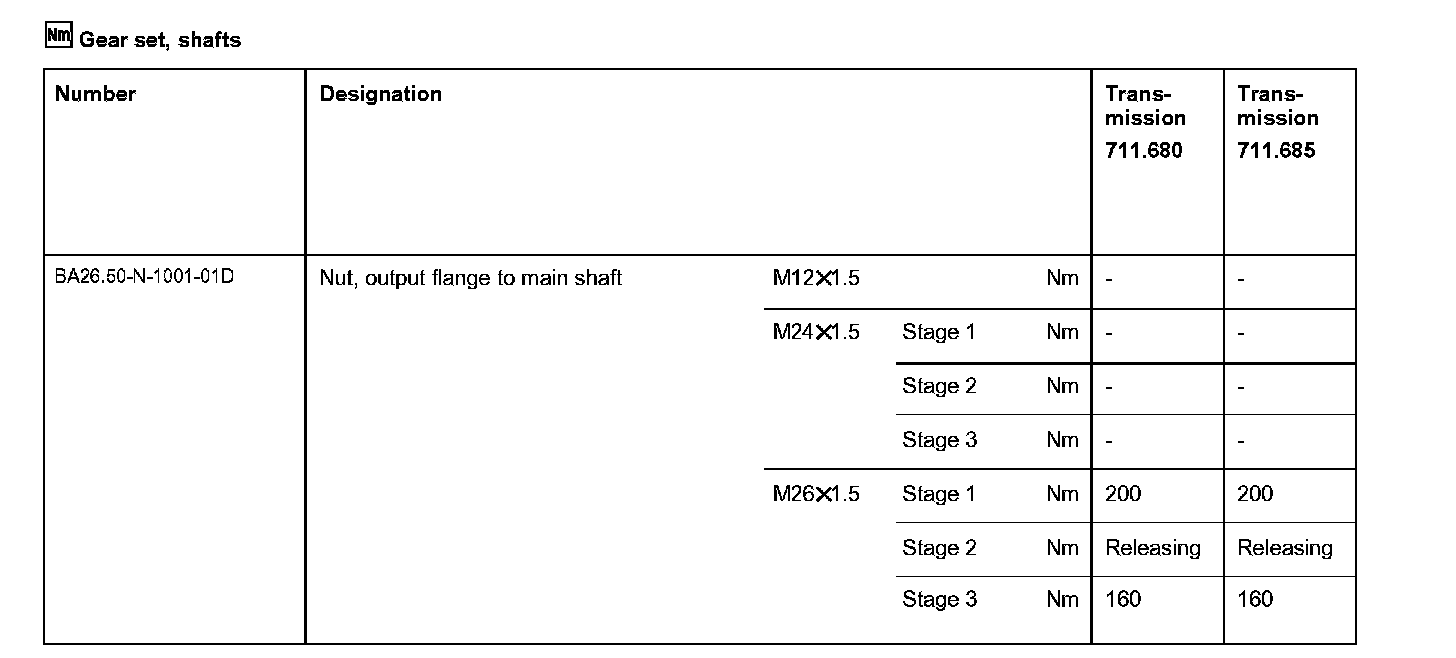

4 Counterhold output flange (2) using pin wrench and tighten with the previously removed nut (1) using the socket (1st stage),.
5 Remove nut (1) again and tighten new nut (1) using socket (3rd stage),

Counterhold output flange (2) using pin wrench.
