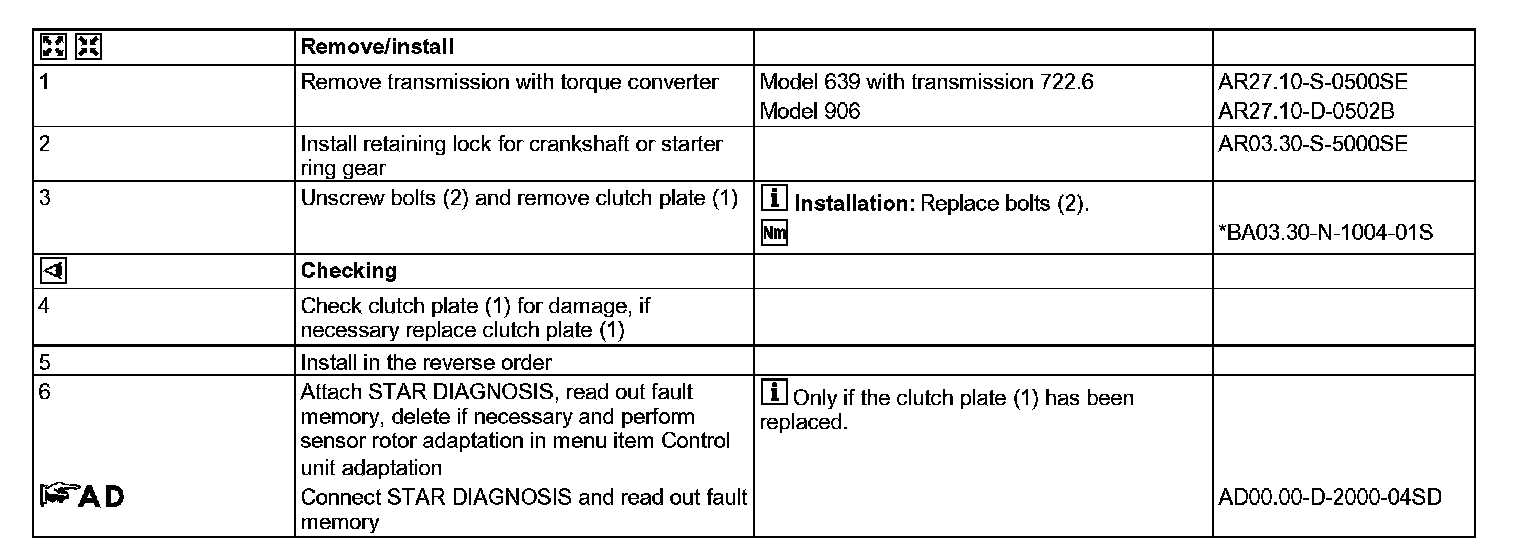

AR03.30-S-8003SE Remove/Install Drive Plate




AR03.30-S-8003SE Remove/Install Drive Plate







Shown on engine 642.992 in model 906

1 Clutch plate
2 Bolts
