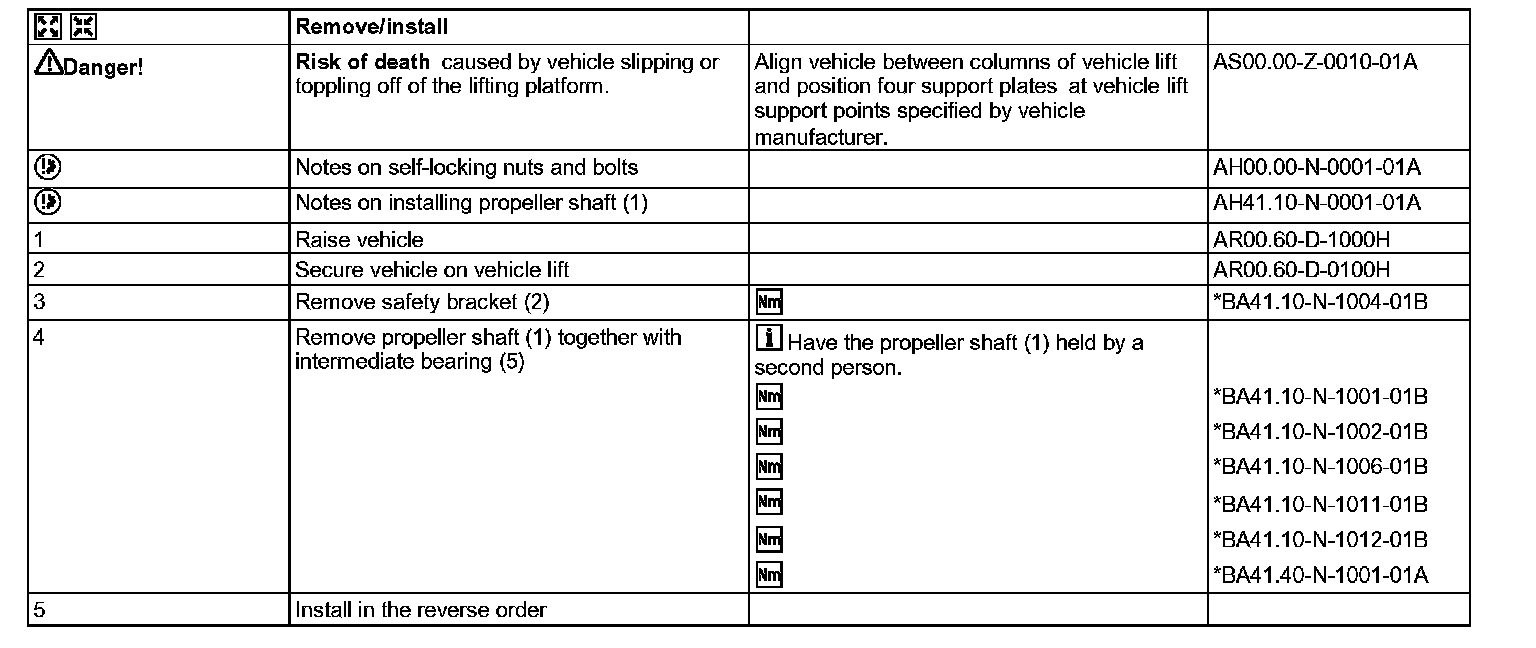

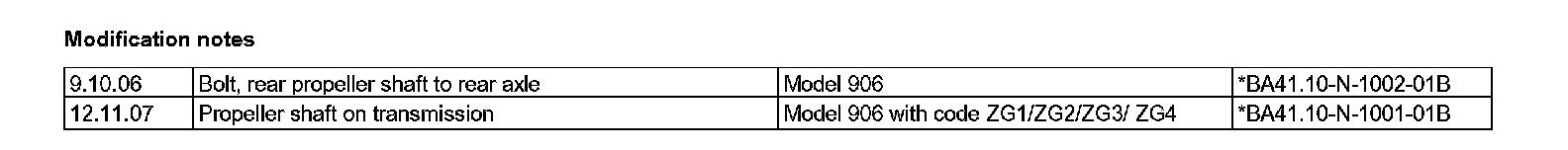

AR41.10-D-0050H Remove/Install Propeller Shaft




AR41.10-D-0050H Remove/Install Propeller Shaft

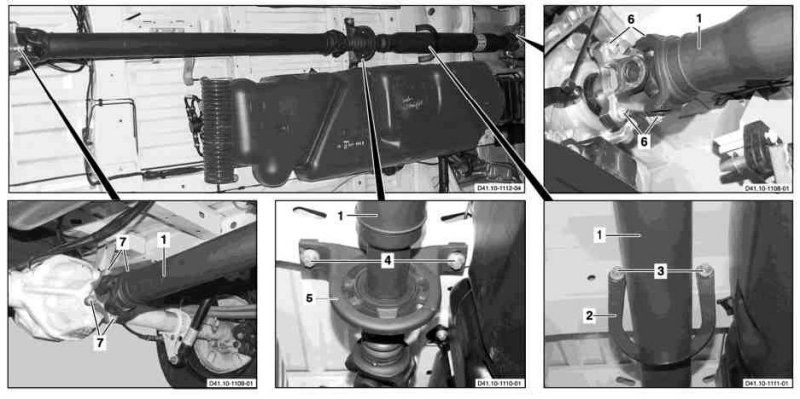

Shown on model 906 with 2-piece propeller shaft

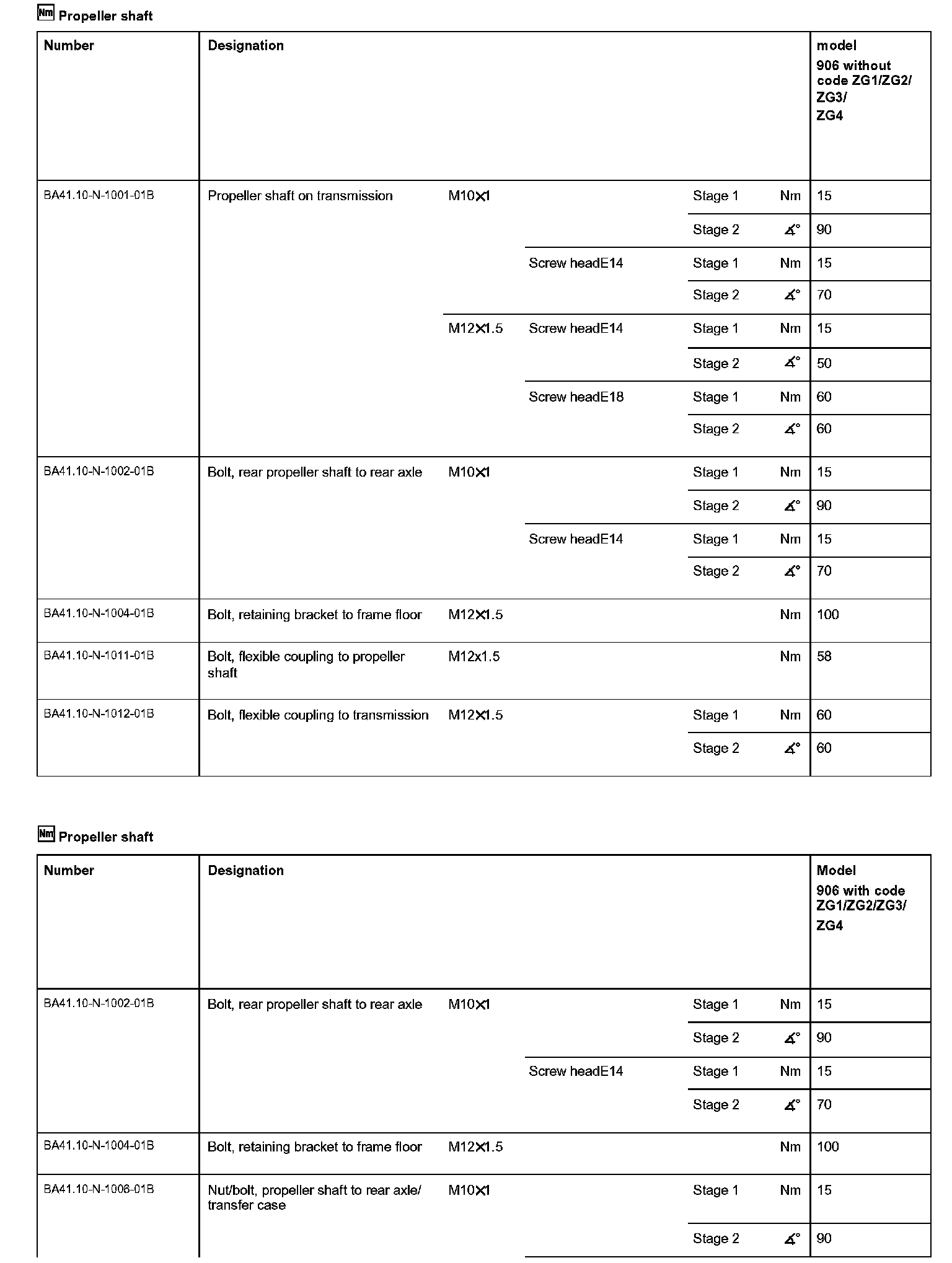

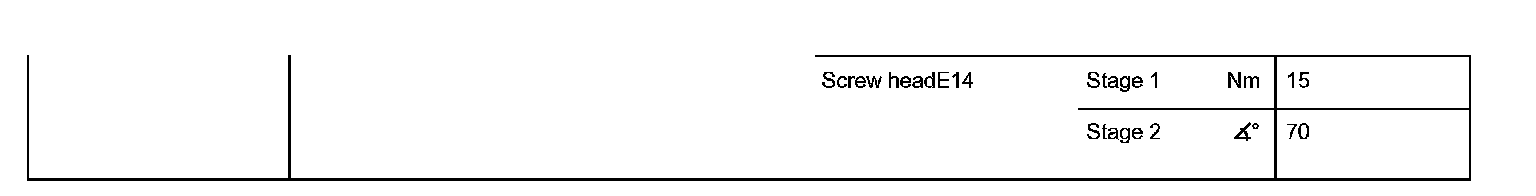

1 Propeller shaft
2 Securing clip
3 Bolts
4 Bolts

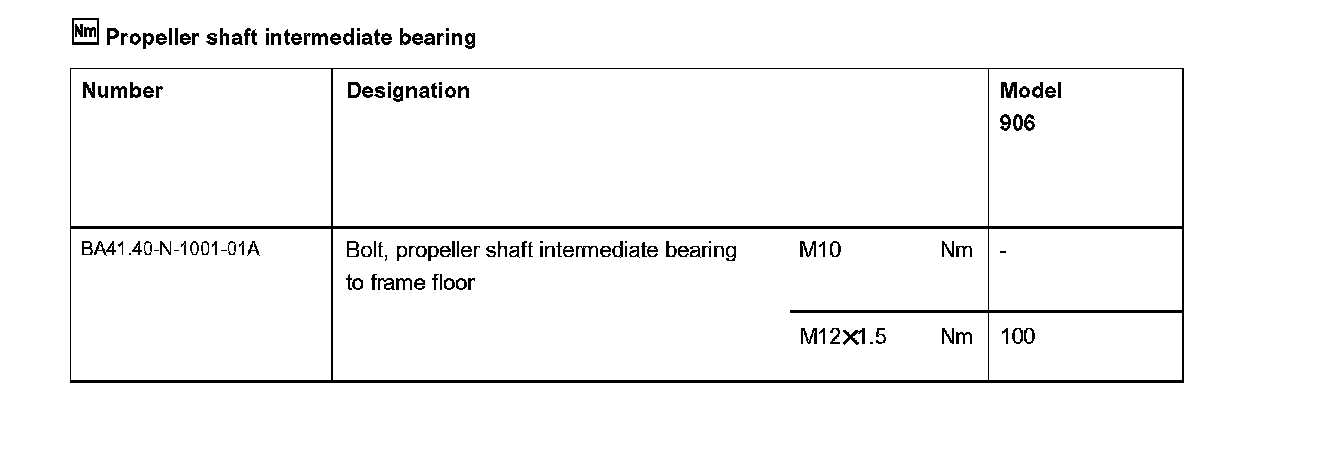

5 Intermediate bearing
6 Bolts
7 Bolts
