AR41.10-D-0101HA Remove/Install Propeller Shaft Intermediate Bearing

AR41.10-D-0101HA Remove/Install Propeller Shaft Intermediate Bearing

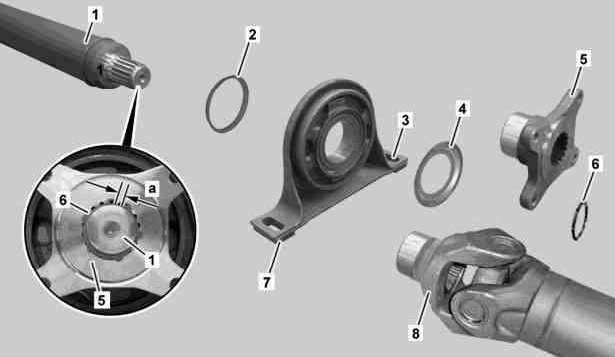

- Single-piece propeller shaft, 3-piece propeller shaft, front propeller shaft center support bearing





1 Propeller shaft
2 Protective cap
3 Propeller shaft center support bearing
4 Protective cap
5 Flange (single-piece propeller shaft)
6 Retaining ring
7 Shim (5 mm)
8 Front propeller shaft with universal joint (3-piece propeller shaft)
a 4 mm











000 589 45 33 00
Puller





366 589 02 15 00
Drift





711 589 01 15 00
Drift





906 589 00 15 00
Drift





906 589 02 15 00
Drift
