AR41.10-D-0101-02HA Detach Propeller Shaft Center Support Bearing

AR41.10-D-0101-02HA Detach Propeller Shaft Center Support Bearing
- Front propeller shaft intermediate bearing







000 589 45 33 00
Puller





366 589 02 15 00
Drift

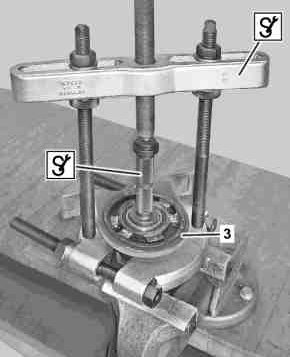

1 Detach propeller shaft center support bearing (3) and, if fitted, protective cap using puller and drift (drift = thrust piece).





2 Check protective cap (4) on propeller shaft and, replace if necessary.

If damaged, use punch to drive protective cap off the propeller shaft.
