Axle Shaft Assembly: Service and Repair

AR35.30-D-0620B Remove/Install Rear Axle Shaft

MODEL 667
- with REAR AXLE 741.131

MODEL 690.6
- with REAR AXLE 741.130

MODEL 904
- with REAR AXLE 741.130

MODEL XD4, XD5, YD4, YD5
- with REAR AXLE 741.130

MODEL 906
- with REAR AXLE 741.413 /414 /416 /420

MODEL 900.65
- with REAR AXLE 741.413 /414 /420

MODEL 8AC906.153 /155 /655 /657
- with REAR AXLE 741.429
- with CODE (ZL3) National version for Latin America

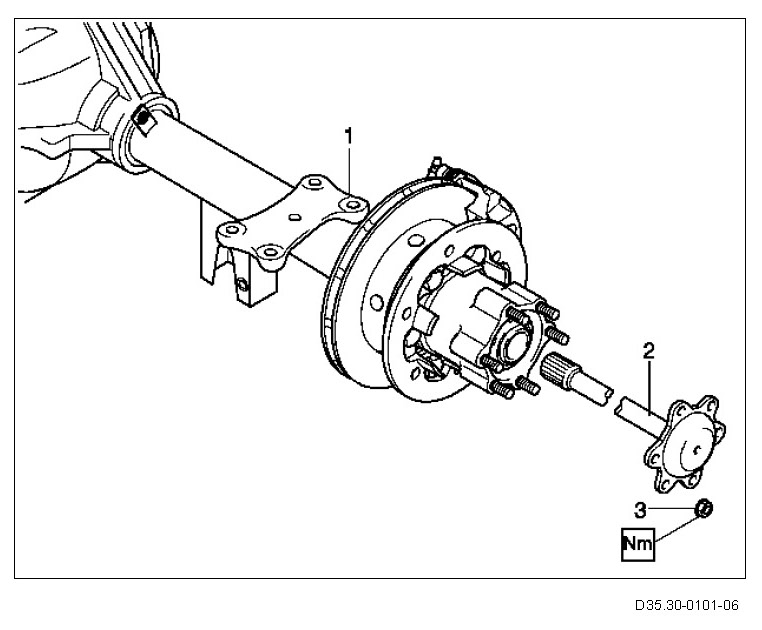

1 Rear axle
2 Rear axle shaft
3 Collar nut
