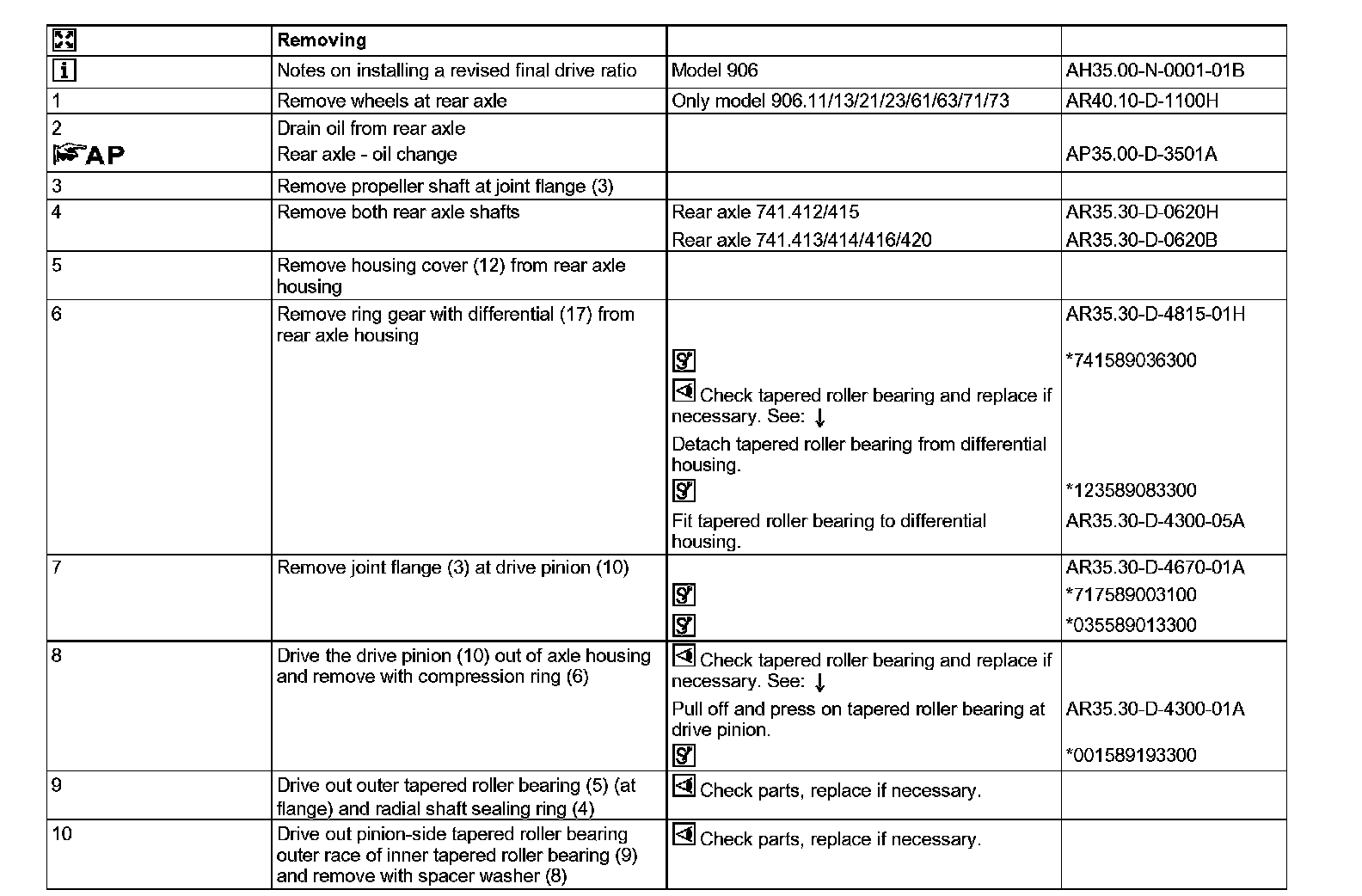

AR35.30-D-4815H Remove and Install Drive Pinion and Ring Gear With Differential

AR35.30-D-4815H Remove and Install Drive Pinion and Ring Gear With Differential
- REAR AXLE 741.412 /415 in MODEL 906.11 /21 /61 /71 /13 /23 /63 /73
- REAR AXLE 741.413 /414 /416 /420 in MODEL 906.15 /25 /65

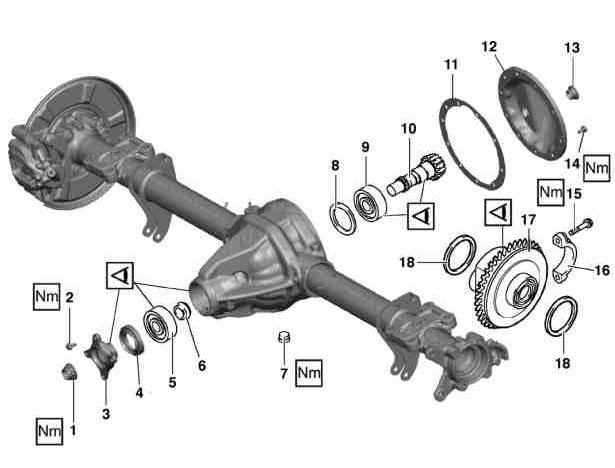

Shown on rear axle 741.415

1 Collar nut
2 Screw
3 Joint flange
4 Radial shaft seal
5 Outer tapered roller bearing
6 Compressed ring
7 Oil drain screw
8 Shim
9 Inner tapered roller bearing
10 Drive pinion
11 Housing cover seal
12 Housing cover
13 Oil filler plug
14 Screw
15 Screw
16 Bearing bracket
17 Ring gear with differential
18 Shim


























741 589 03 63 00
Spreader





717 589 00 31 00
Retainer wrench





035 589 01 33 00
Puller





906 589 01 21 00
Adjustment device





711 589 01 15 00
Drift





140 589 16 23 00
Measuring plate





123 589 08 33 00
Puller





001 589 53 21 00
Dial indicator





363 589 02 21 00
Dial indicator holder





001 589 19 33 00
Puller





741 589 02 63 00
Holding device





741 589 01 63 00
Pressing-on tool





001 589 49 21 00
Torque meter





741 589 02 15 00
Drift





741 589 00 43 00
Insertion tool
