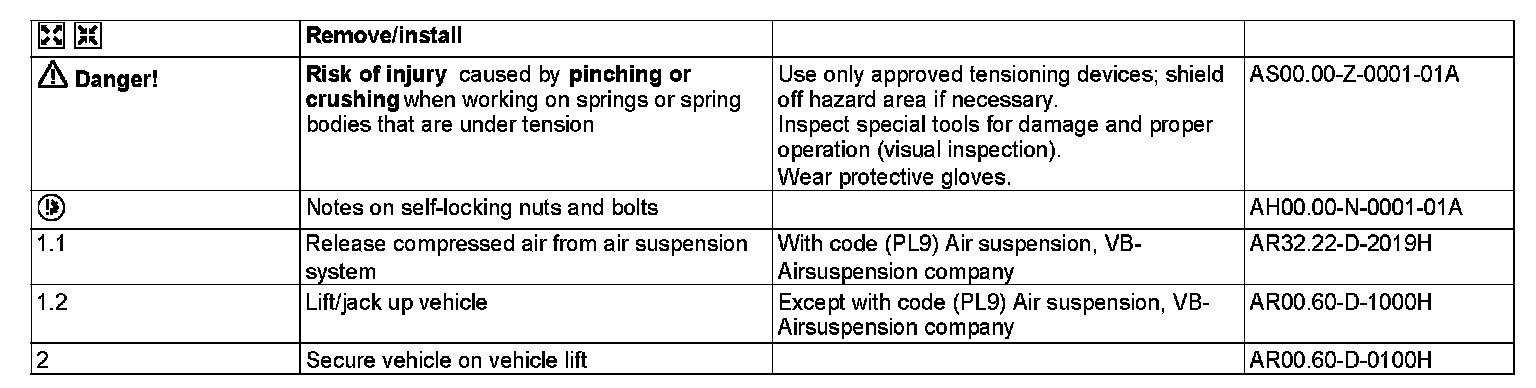

AR35.10-D-0010I Remove/Install Complete Rear Axle

AR35.10-D-0010I Remove/Install Complete Rear Axle

REAR AXLE 741.412 /415 in MODEL 906.11 /13 /21 /23 /61 /63 /71 /73
REAR AXLE 741.413 /414 /416 /420 in MODEL 906.15 /25 /65
REAR AXLE 741.415 in MODEL 900.63
REAR AXLE 741.413 /414 /420 in MODEL 900.65
REAR AXLE 741.428 in MODEL 8AC906.133 /631 /633 /635
- with CODE (ZL3) National version for Latin America

REAR AXLE 741.429 in MODEL 8AC906.153 /155 /655 /657
- with CODE (ZL3) National version for Latin America

Shown on model 906.633 with rear axle 741.412






1 Spring U-bolt
2 Spring plate
4 Parking brake cable
5 Shock absorber
9 Brake caliper
10 Screw
11 Screw
12 Nut
14 Wiring harness
15 Screw
16 Propeller shaft
17 Screw
18 Vent line
19 Nut
21 Plate (with code (PL9) Air suspension from VB-Air suspension)
22 Link rod (with code (PL9) Air suspension from VB- Air suspension)
35 Spring

S10/3 Left rear brake pad contact sensor
S10/4 Right rear brake pad contact sensor

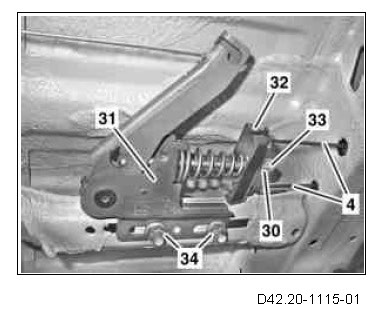

4 Parking brake cable

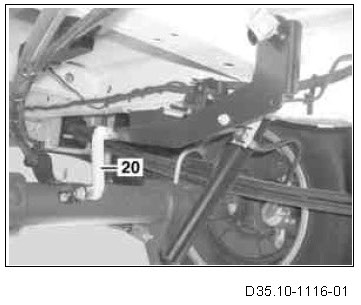

20 Relay lever (with code (LG0) Bi-xenon headlamp or code (LG1) Bi-xenon headlamp with cornering lights and without code (PL9) Air suspension from VB-Air suspension)
30 Nut
31 Cable adjustment device
32 Bracket
33 Jam nut
34 Nut

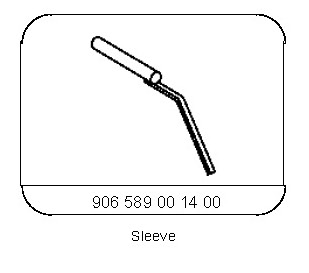

906 589 00 14 00, Sleeve
