AR25.20-D-0180SD Remove/Install Central Clutch Operator




AR25.20-D-0180SD Remove/Install Central Clutch Operator



- MODEL 906 with ENGINE 642 with TRANSMISSION 711.685

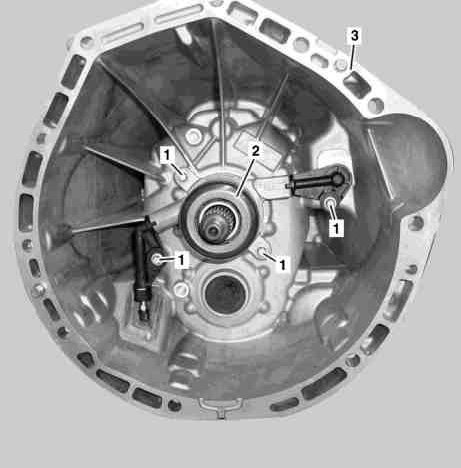

Shown on transmission 711.660

1 Screw
2 Central clutch release bearing
3 Transmission
