AR26.10-D-0023-02A Detach/Install Lines and Components on Underside of Transmission

AR26.10-D-0023-02A Detach/Install Lines and Components on Underside of Transmission











129 589 00 91 00
Set of stop plugs





1 Remove securing clamp (arrow), disassemble clutch line (1) and seal with a suitable stop plug.

Collect escaping brake fluid.





2 Remove the exhaust bracket (2).

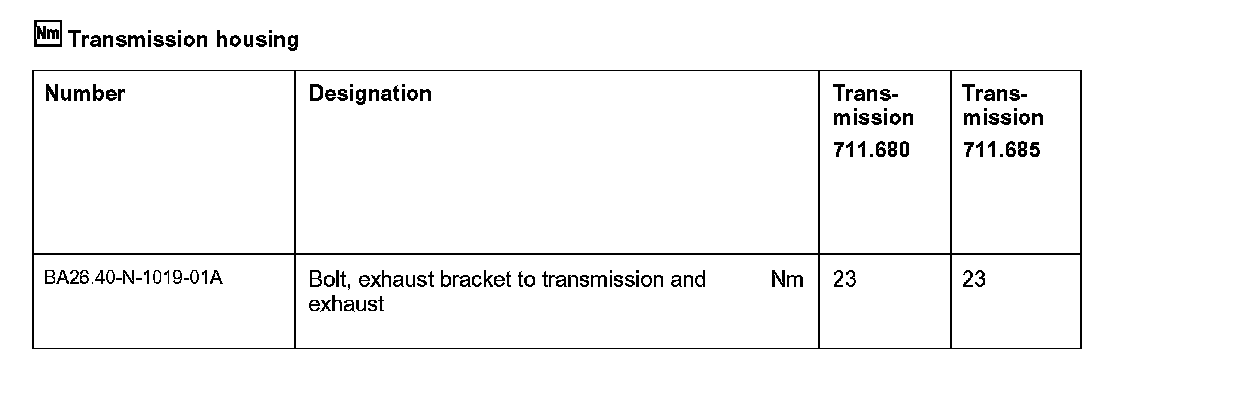

Installation: Check intermediate rubber layers for wear, replace if necessary.





3 Support transmission on frame type integral support from underneath with a suitable block of wood (3).

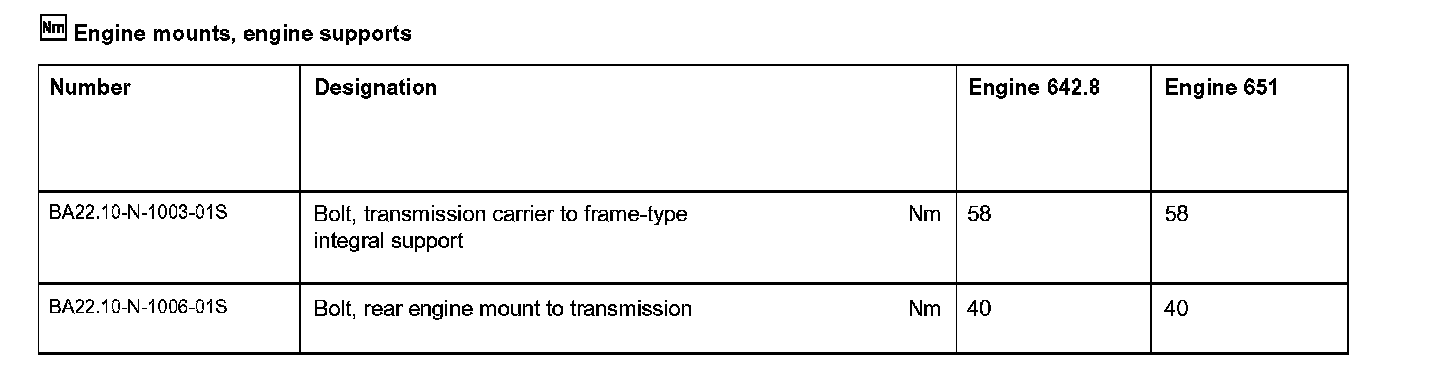

4 Unbolt engine mount (5) from transmission.

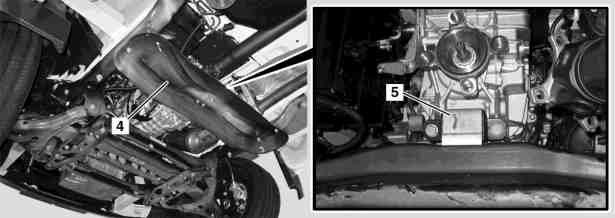

5 Mark installation position of transmission crossmember (4)

The mounting holes are arranged asymmetrically.

6 Remove transmission crossmember (4) along with engine mount (5).

Installation: When removing, observe applied marking on the transmission crossmember (4).

7 Install in the reverse order.
